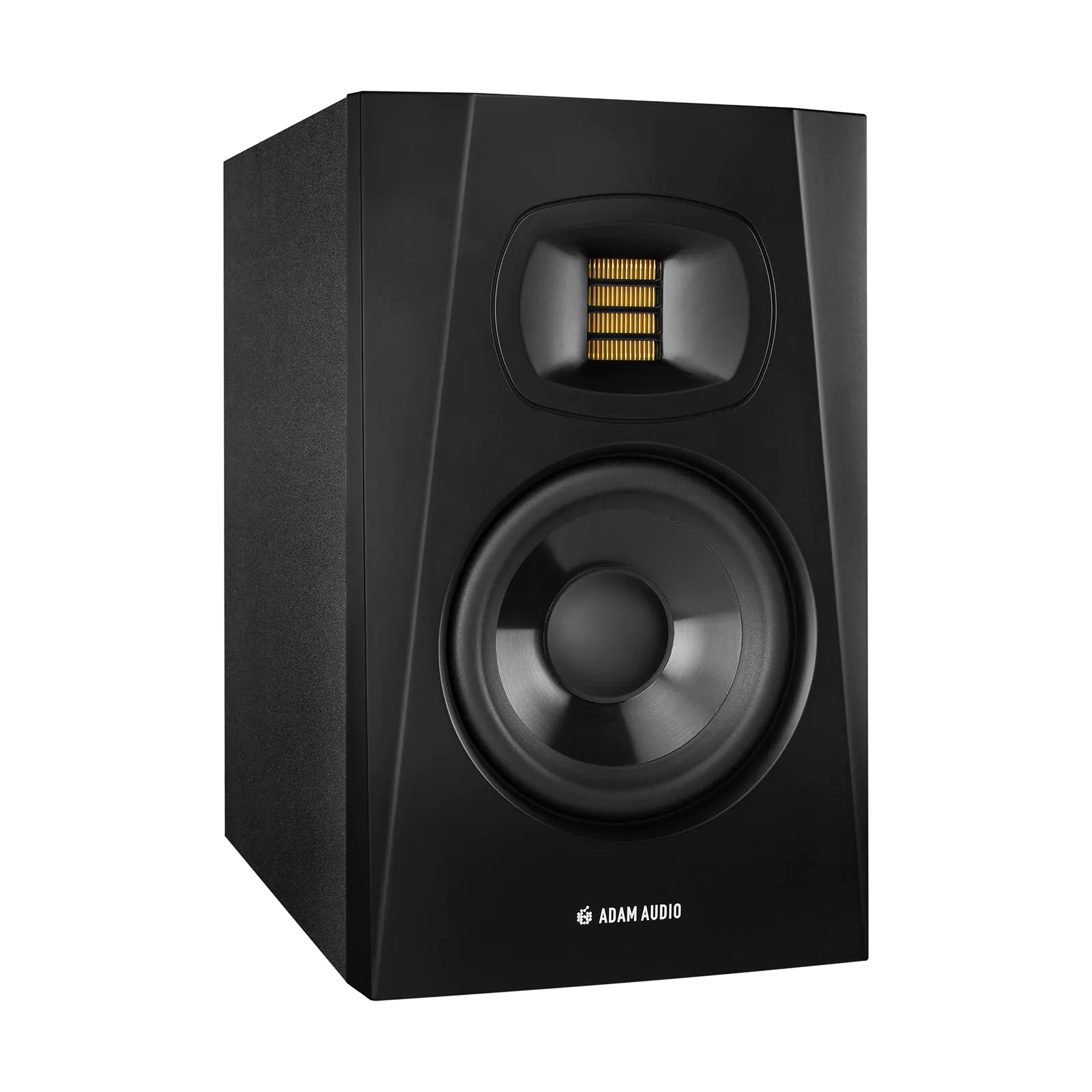

Adam Audio T5V - Nearfield Studio Monitor (Pair)
Adam Audio T5V - Nearfield Studio Monitor (Pair)
Não foi possível carregar a disponibilidade de recolha
Compartilhar
Brand: Adam Audio
Model: T5V
The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
Visão geral
Visão geral
With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.
Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.
U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
Polypropylene 5” woofer and rear-firing bass-reflex port
Total RMS Amp. Power: 70 W
Frequency Response: 45 Hz - 25 kHz (-6 dB)
Max. SPL Per Pair at 1 m: ≥106 dB
Especificações
Especificações

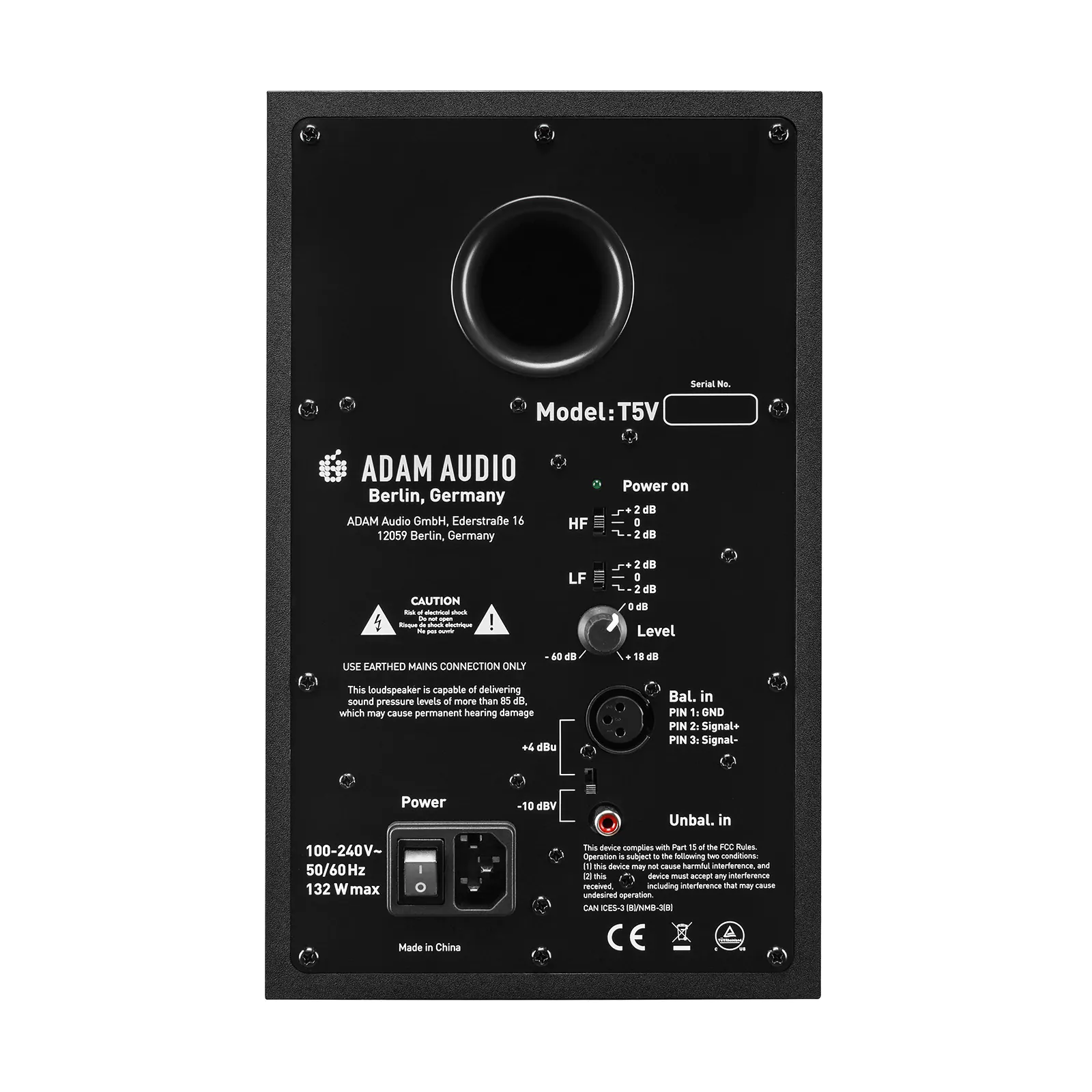

Panel: Rear
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm / 20 kOhm
Amplification
Woofer
Amplifier Type: PWM
Amp. Power RMS: 50 W
Tweeter
Amplifier Type: PWM
Amp. Power RMS: 20 W
Panel: Rear
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm / 20 kOhm
Amplification
Woofer
Amplifier Type: PWM
Amp. Power RMS: 50 W
Tweeter
Amplifier Type: PWM
Amp. Power RMS: 20 W
Woofer
Basket Diameter: 5″
Voice Coil Diameter: 1″
Cone Material: Polypropylene
Tweeter
Type: U-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm Diameter: 1.9″ (48 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS
Input Sensitivity: -10 to +4 dB
Gain: Yes
High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz: – 2 dB, 0 dB, +2 dB
