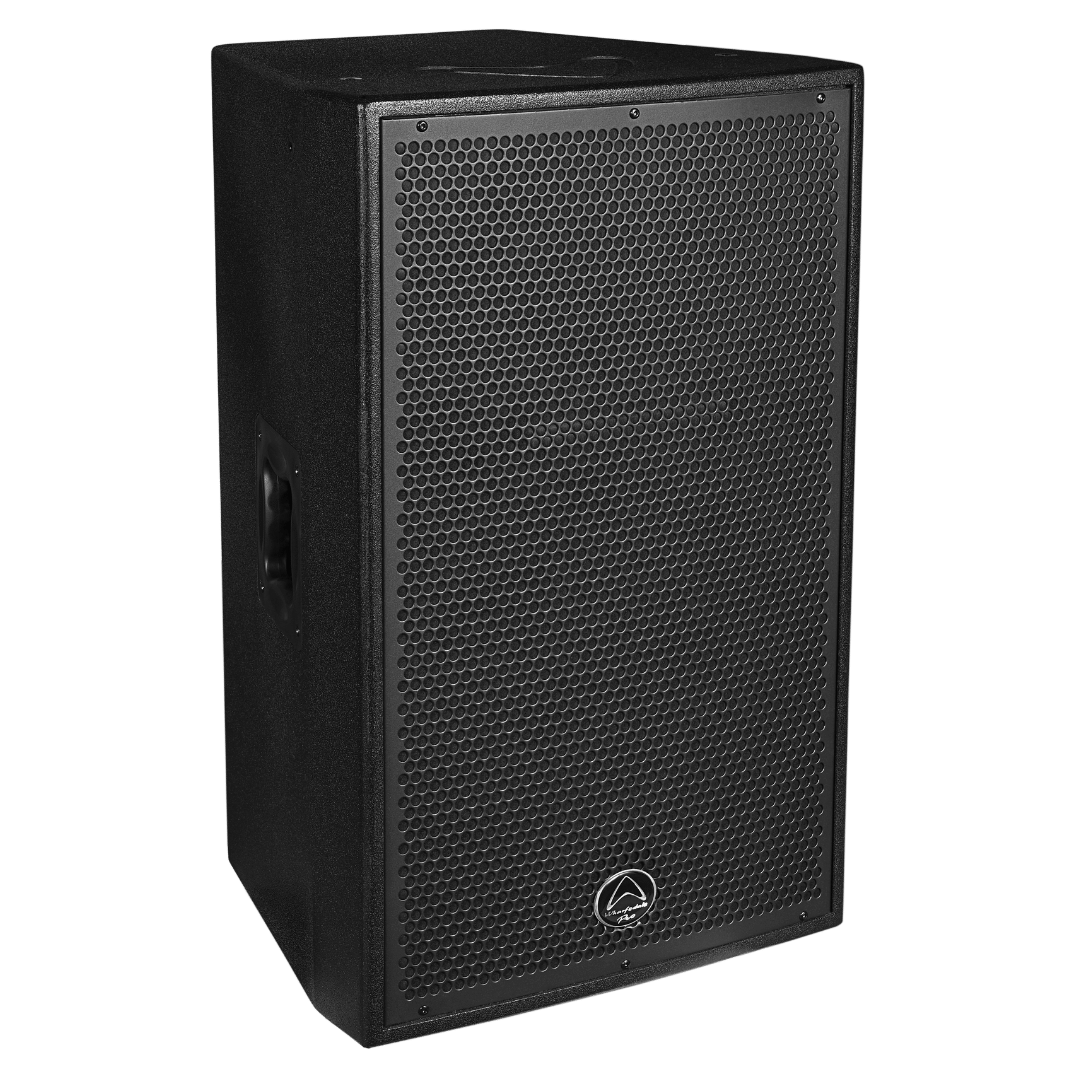

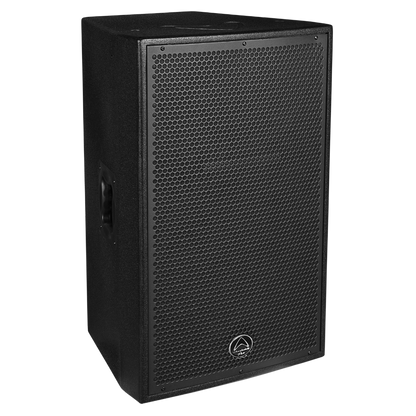

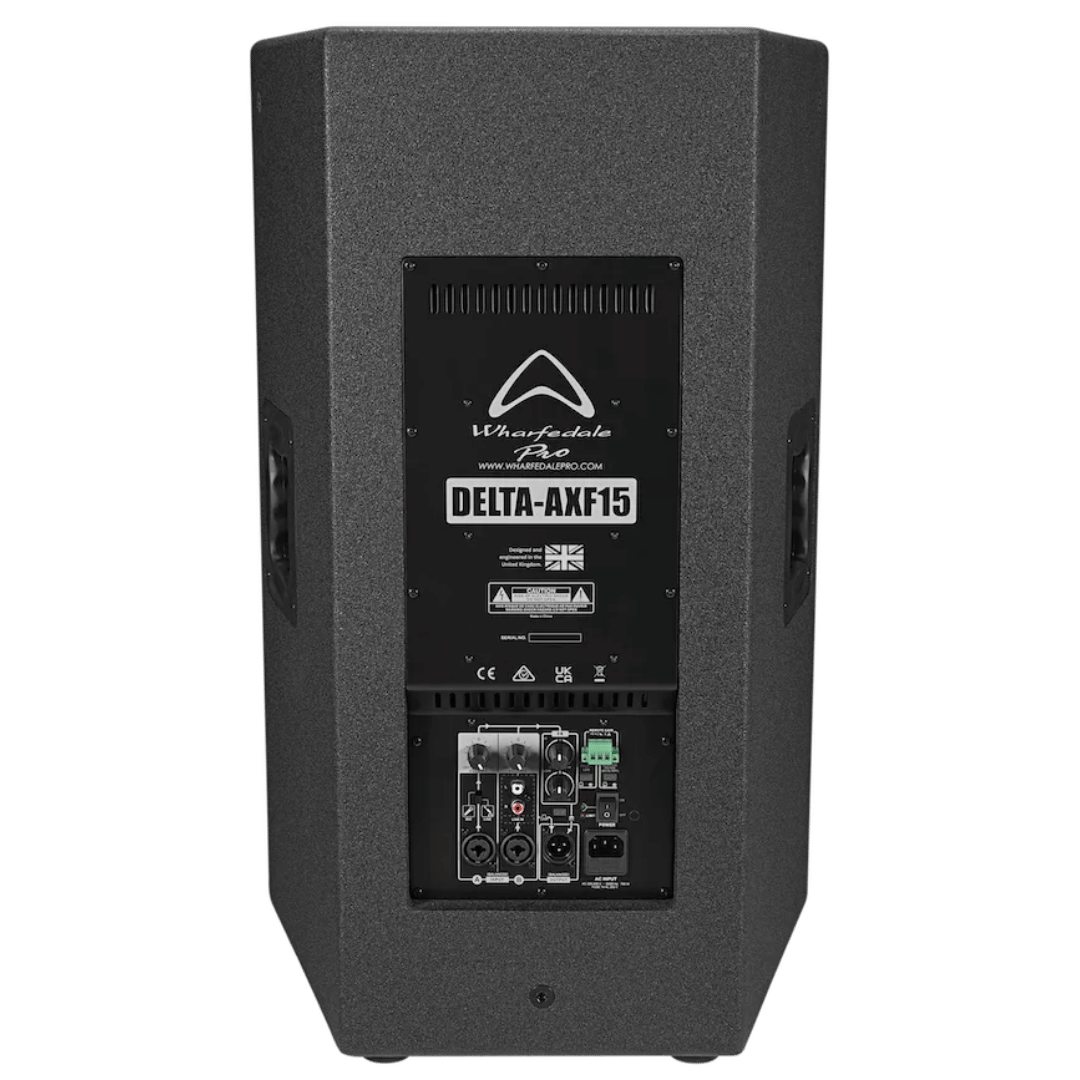

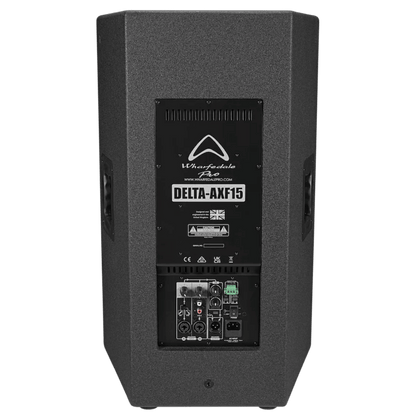

Wharfedale Pro Delta AXF15

DELTA-AXF15 is a 15″ bi-amplified active loudspeaker from our upgraded DELTA-AXF Series — delivering increased power, improved clarity, and professional FIR-processed performance in a robust plywood enclosure.

Driven by an enhanced amplifier module providing 800 W continuous (1600 W peak) power, DELTA-AXF15 offers impressive output with a max SPL of 131.5 dB @ 1 m. Its custom-designed 15″ LF driver with a 3″ voice coil delivers tight, punchy low-end, while a 2″ HF compression driver ensures clear, articulate highs with a controlled 90° x 45° dispersion for consistent coverage.

Thanks to newly integrated internal FIR DSP, the system benefits from precise magnitude and phase alignment, smoother crossover performance and enhanced overall definition — technology derived from our WLA-1A System.

Constructed from durable birch plywood, DELTA-AXF15 maintains the proven reliability of the DELTA Active range while unlocking higher performance and improved voicing, making it ideal for live sound, installations and rental applications.

Active or Passive - Active
System Type - Full-Range
Configuration 2-way
System Continuous Power    800 W
System Peak Power 1600 W
Max SPL @ 1m 131.5 dB
Freq Range (-10 dB) 45 Hz - 20 KHz
Freq Response (+/-3 dB)    50 Hz - 20 KHz
IP Certification None
Driver Brand Wharfedale Pro
LF Driver Size    15"
LF Voice Coil Size 3″
LF Rated Impedance 8 Ω
HF Driver Type    Compression Driver
HF Voice Coil Size 2″
HF Diaphragm Material Titanium
HF Exit Size 1″
HF Power (RE:AES2-2012)    50 W
HF Rated Impedance 8 Ω
HF Nominal Coverage (H x V) 90° x 45°
Input Connector    1/4” jack / XLR combo / 2 x RCA
Waveguide Type    Elliptical
Enclosure Material    Birch Plywood
Grille Material and Finish Steel Black
Finish    Black Tough-Tone
Handles    2
Deployment Flying, Ground, Pole
Pole Mount Dual Angle (0° / 10°) 35 mm
Rigging    Yes
M10 6
Sensitivity 2.83v / 1m    n/a dB
System Rated Impedance    n/a
Crossover Frequency 2.0 kHz
Recommended HPF = BW 18 dB/OCT.    45 Hz
Amplifier design Class D
EQ Type    None
Active loudspeaker Input Impedance Balanced: 20K Ω / Unbalanced: 10K Ω
Link Connector    pin XLR
Input sensitivity Mic: -40 dBu / Line: 0 dBu
Max input level    22 dBu
Line output Switchable LOOP/MIX Balanced Pin XLR
Main Power AC100-120 V~/220-240 V~,50/60 Hz
Power Supply High Efficiency SMPS
Included Accessory Quick Start Guide, AC Cable
Unpacked - Height (mm)    700
Unpacked - Width Front (mm) 446
Unpacked - Width Rear (mm) 281.4
Unpacked - Depth (mm) 406
Packed - Height (mm) 803
Packed - Width Front (mm) 638
Packed - Width Rear (mm) 366
Packed - Depth (mm) 498
Weight - Nett (kg) 30.5
Weight - Gross (kg) 35.4
