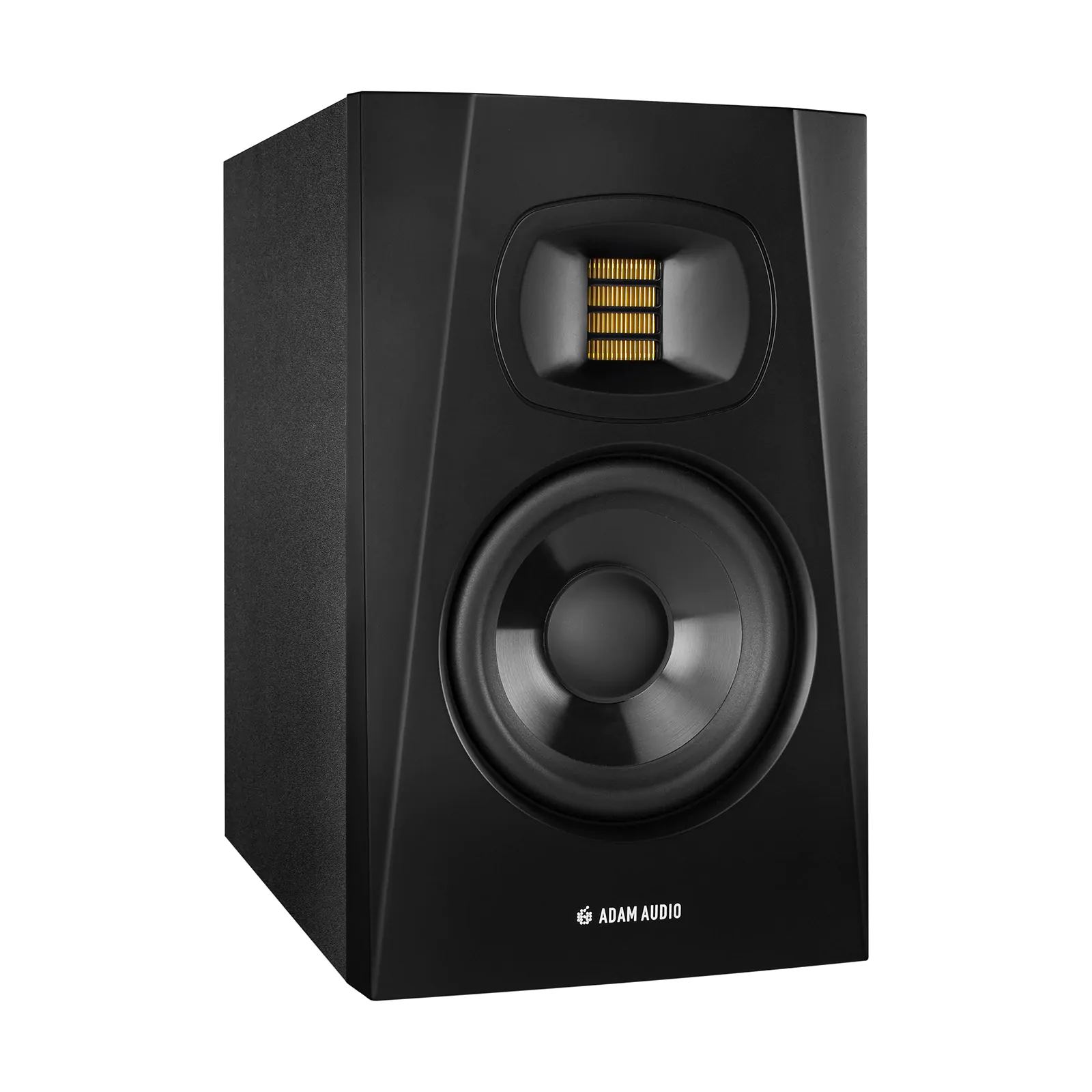

Adam Audio T5V - Nearfield Studio Monitor (Pair)

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
Polypropylene 5” woofer and rear-firing bass-reflex port
Total RMS Amp. Power: 70 W
Frequency Response: 45 Hz - 25 kHz (-6 dB)
Max. SPL Per Pair at 1 m: ≥106 dB

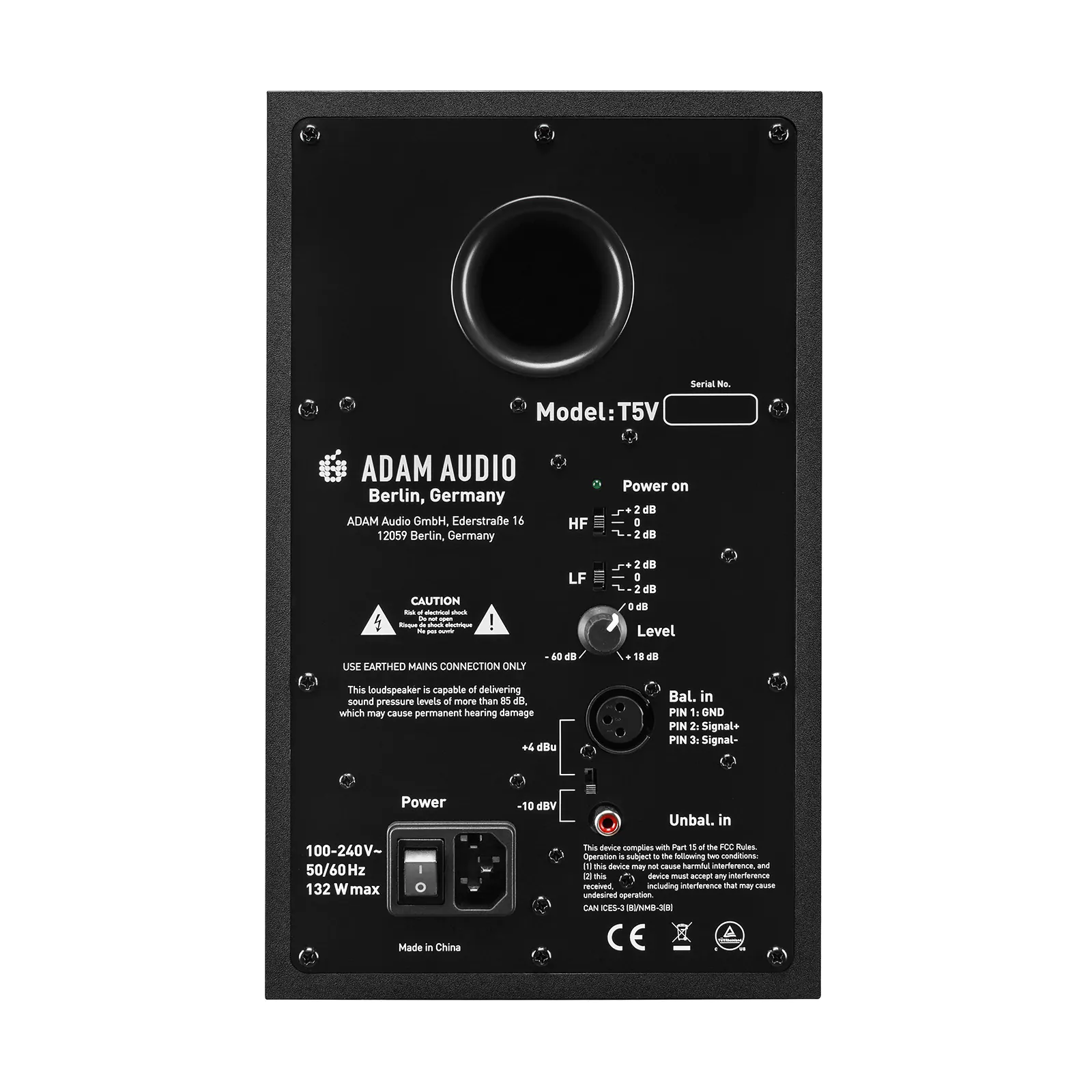

Panel: Rear
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm / 20 kOhm
Amplification
Woofer
Amplifier Type: PWM
Amp. Power RMS: 50 W
Tweeter
Amplifier Type: PWM
Amp. Power RMS: 20 W
Panel: Rear
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm / 20 kOhm
Amplification
Woofer
Amplifier Type: PWM
Amp. Power RMS: 50 W
Tweeter
Amplifier Type: PWM
Amp. Power RMS: 20 W
Woofer
Basket Diameter: 5″
Voice Coil Diameter: 1″
Cone Material: Polypropylene
Tweeter
Type: U-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm Diameter: 1.9″ (48 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS
Input Sensitivity: -10 to +4 dB
Gain: Yes
High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz: – 2 dB, 0 dB, +2 dB
