Adam Audio T7V - Nearfield Studio Monitor (Pair)

Adam Audio T7V - Nearfield Studio Monitor (Pair)

00:00
N$12,999.00 NAD }
N$7,674.00 NAD } N$12,999.00 NAD }
limited offer Sold out
Taxes included. Contact us for shipping rates
NOTIFY ME WHEN IN STOCK

Brand: Adam Audio
Model: T7V

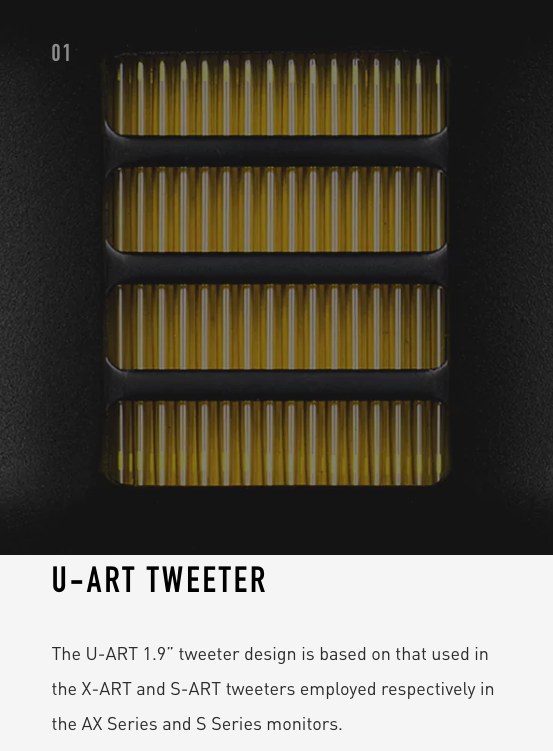

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

Overview

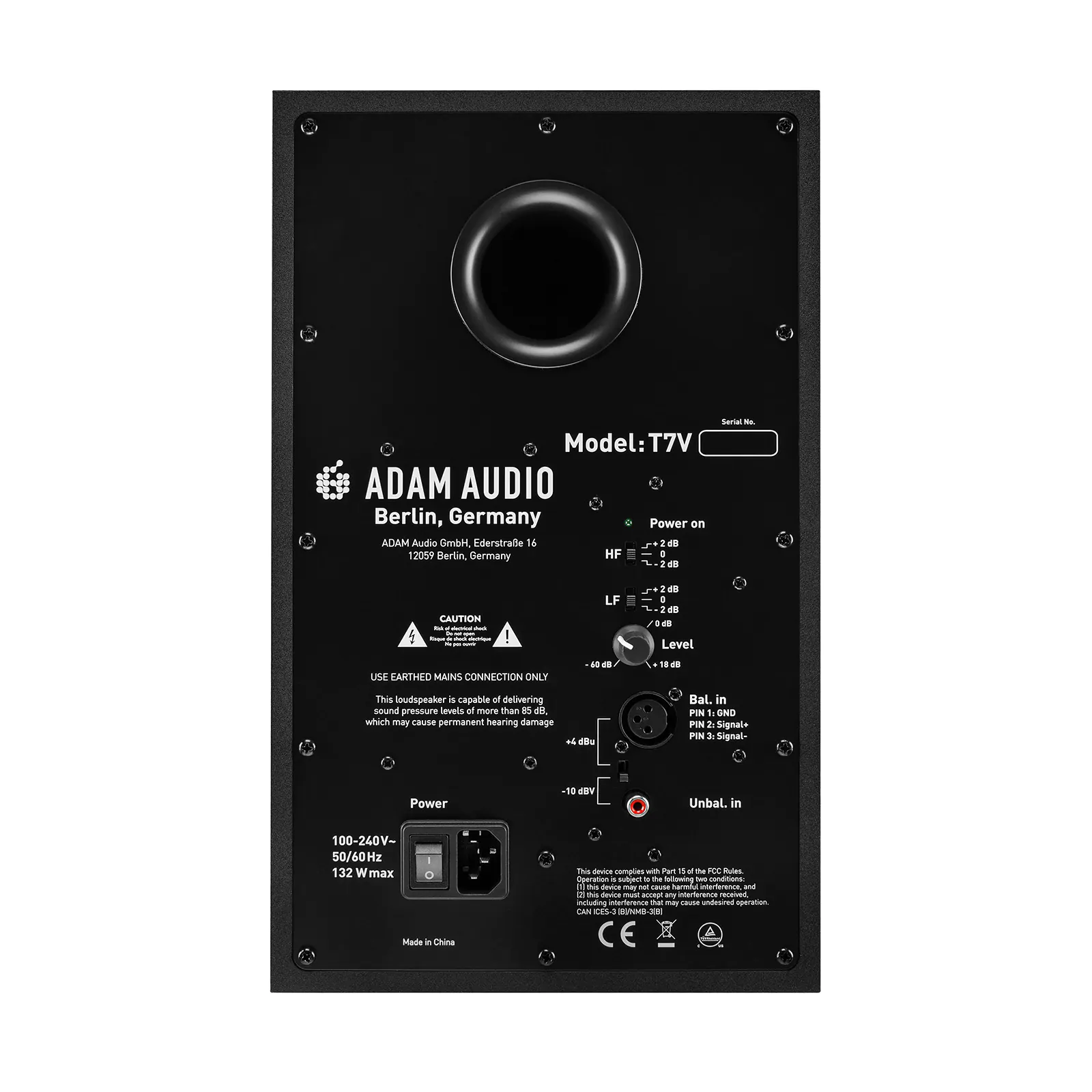

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

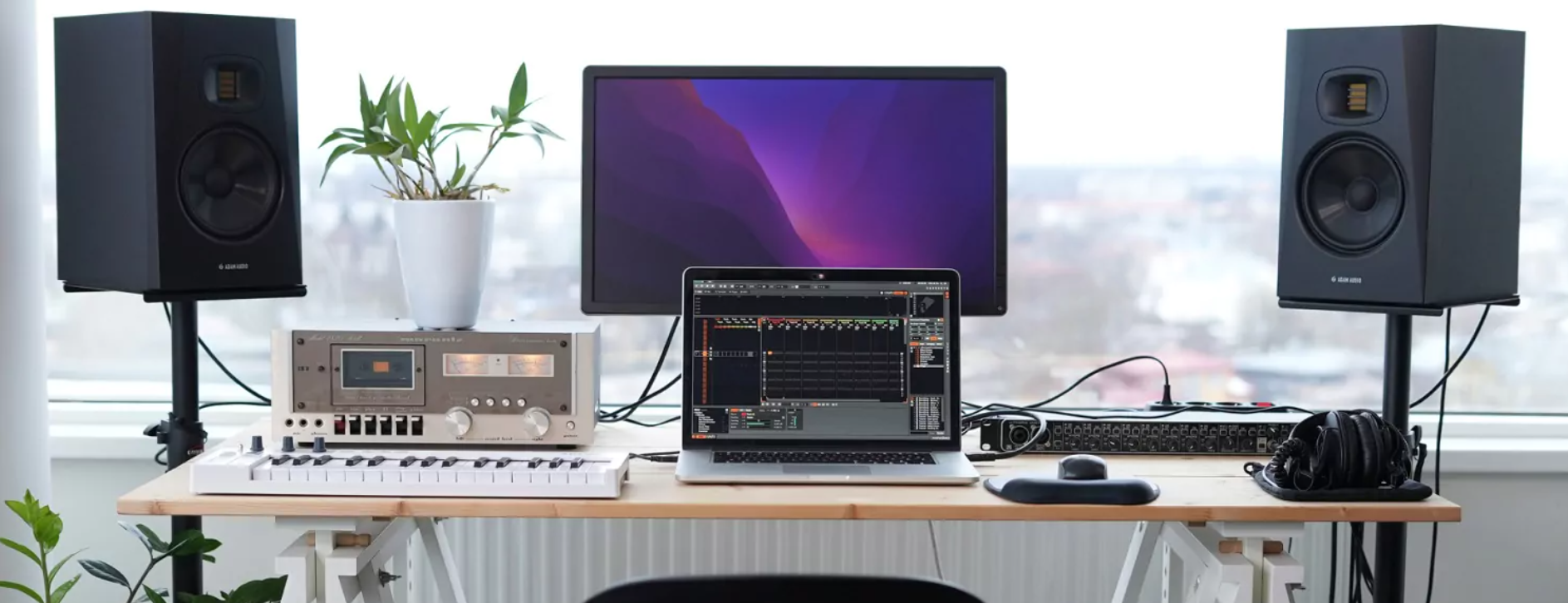

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.

Specifications

Panel: Rear
Max. Power Consumption: 132 W
Weight: 15.7 lbs (7.1 kg)
Height x Width x Depth: 13.7″ x 8.3″ x 11.5” ( 347 mm x 210 mm x 293 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide

Acoustics
Frequency Response: 39 Hz – 25 kHz (-6 dB)
THD > 80 Hz: 0.5 %
Max. SPL per pair at 1 m: ≥110 dB
Crossover Frequency: 2.6 kHz

Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm / 20 kOhm

Drivers
Woofer
Basket Diameter: 7″
Voice Coil Diameter: 1″
Cone Material: Polypropylene
Tweeter
Type: U-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm Diameter: 1.9″ (48 mm)
Velocity Transform Ratio: 4 to 1
Diaphragm Weight: 0.17 g
Waveguide: HPS

Amplification
Woofer
Amplifier Type: PWM
Amp. Power RMS: 50 W
Tweeter
Amplifier Type: PWM
Amp. Power RMS: 20 W

Control Options
Input Sensitivity: -10 to +4 dB
Gain: Yes
High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB

View full details
