Alustage – SCA-11/1X1 Hexa Stage Platform

Alustage – SCA-11/1X1 Hexa Stage Platform

Brand: Alustage
Model: SCA-11/1X1

Enquire here for the latest supplier stock levels and pricing.

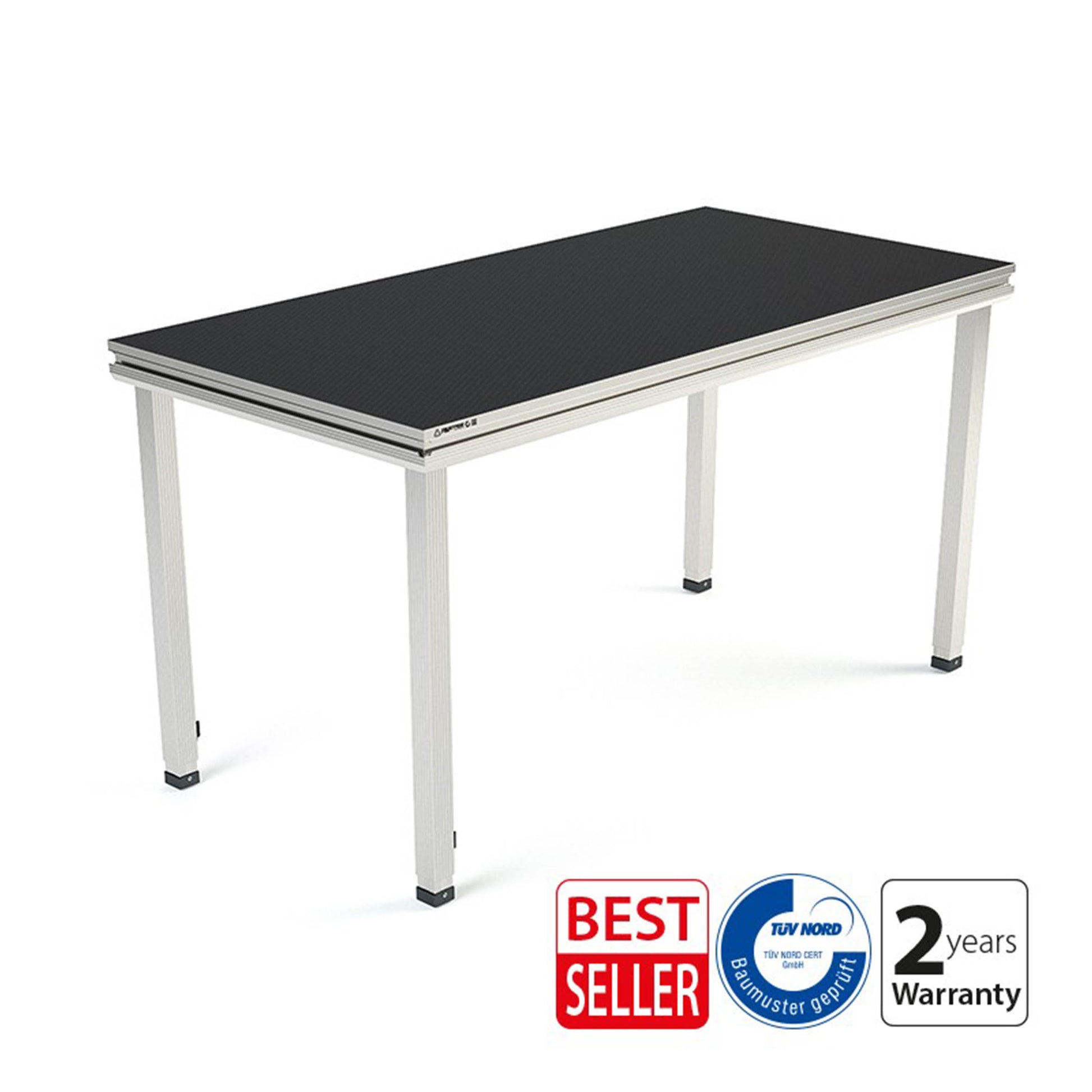

The modular stage platform constitues a base for stage, fashion show catwalks, tribunes and conference podiums. Its top quality is confirmed by the TUV certificate. The platforms come in the following four dimetions: 2.0×1.0 m / 2.0×0.5 m / 1.0×1.0 m / 1.0×0.5 m.

Overview

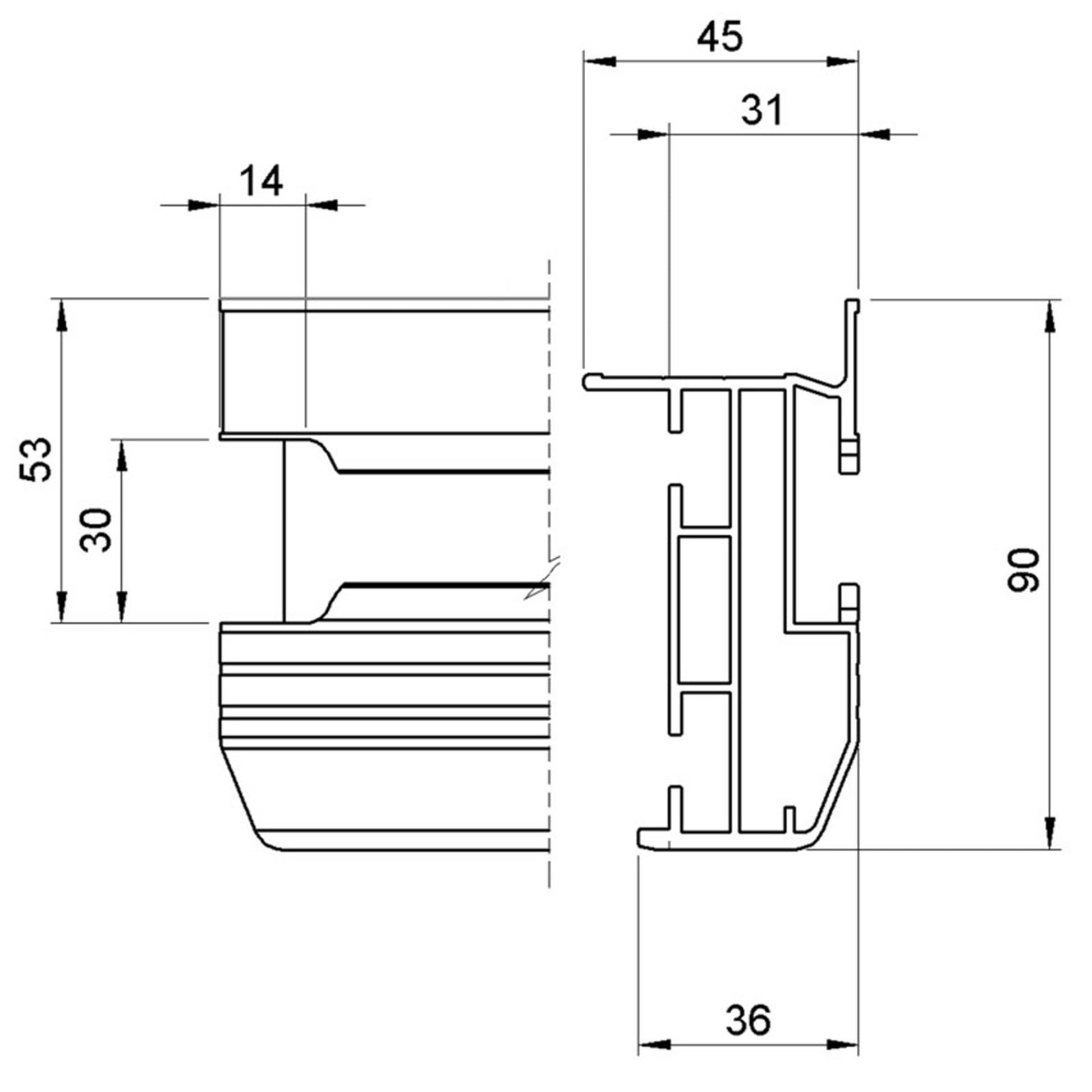

The platforms are based on light and specially designed aluminium sction by means of which platforms are joined together into the desired shape. All platforms accessories (self-levellin insert, barrier clamps, stairs clamps or assembly insert which can be used to hang curtains or advertasing banners) are fastened to the section.

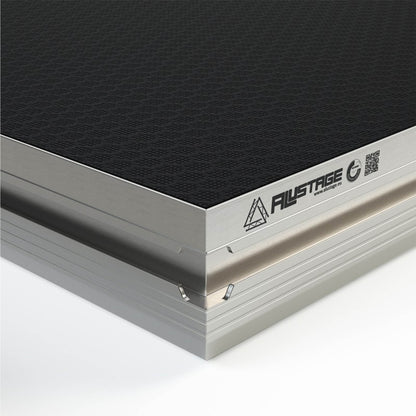

The platform top is made of waterproof plywood with an anti-slip layer which is available in dark brown or dark. At the customer’s request, the platform top can be covered with a venner in the colour of wood.

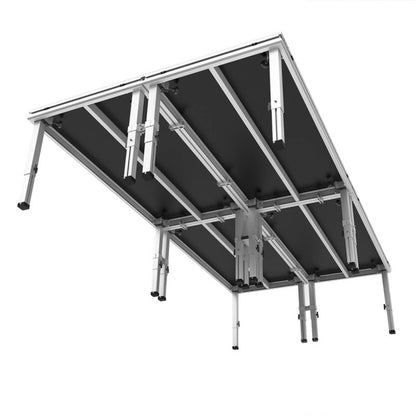

The platforms can be supported by non-adjustable or telestopic legs which make it possible to smoothly and precisely adjust the platform height within 5 different heigh ranges. Rubber feet of the platform legs ensure stability.

Thanks to their structure, the platforms can be installed both, outdoors in different terrains and indoor (inside the buildings, show halls, teatres etc.)

Specifications

Height: 90 mm
Width: 2000 mm
Depth: 1000 mm
Weight: 32,45 kg
Material: Aluminum, birch plywood hexa
Plywood: 12 mm (100% birch)
Load: 750 kg /m2

SKU:ALU01
