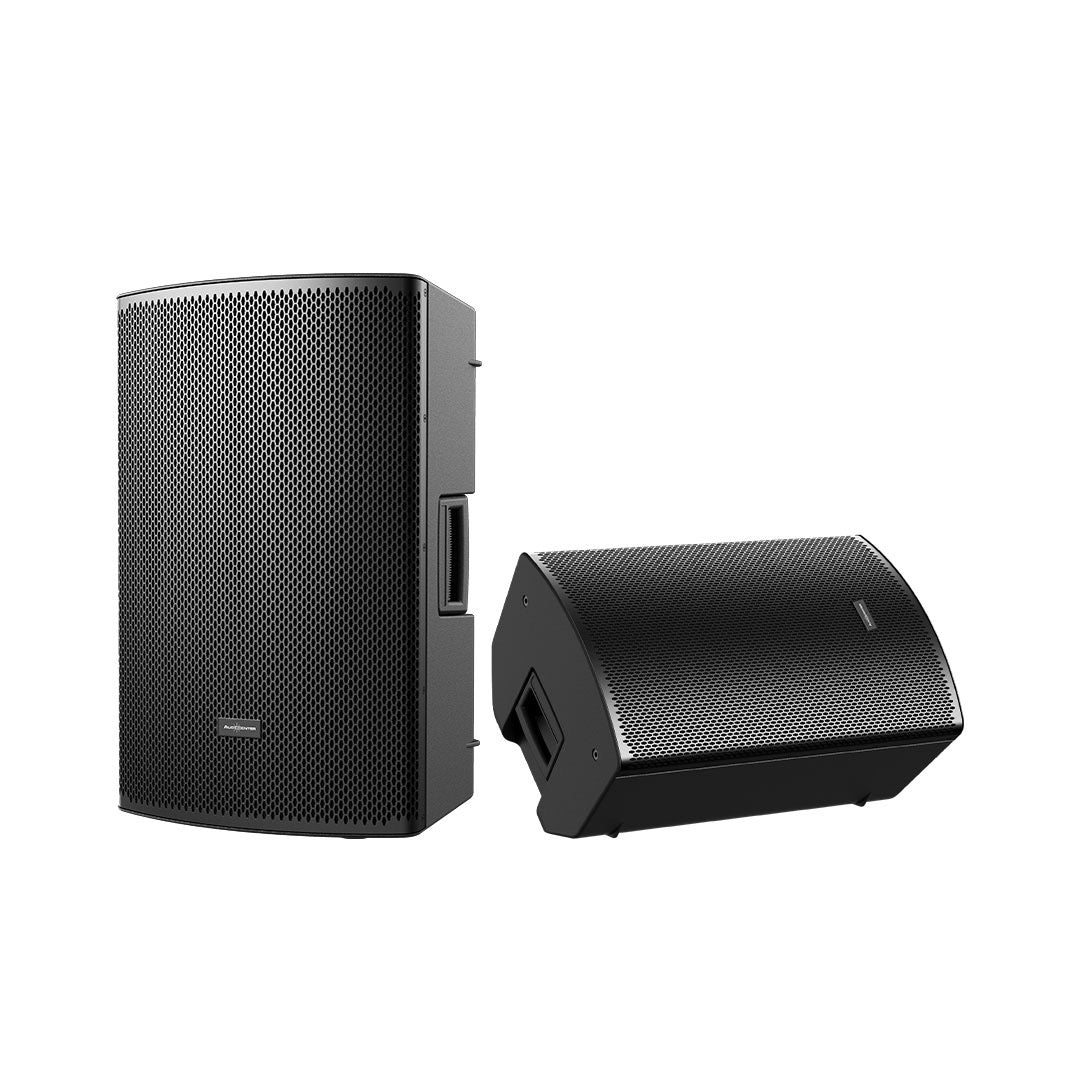

Audiocenter Jam Pack 12 Combo
Audiocenter Jam Pack 12 Combo
Couldn't load pickup availability
Share
High-Performance Portable Active Speaker Combo
The 12” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.
Simple setup
With a stylish and attractive design, the CA Jam Pack 12 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.

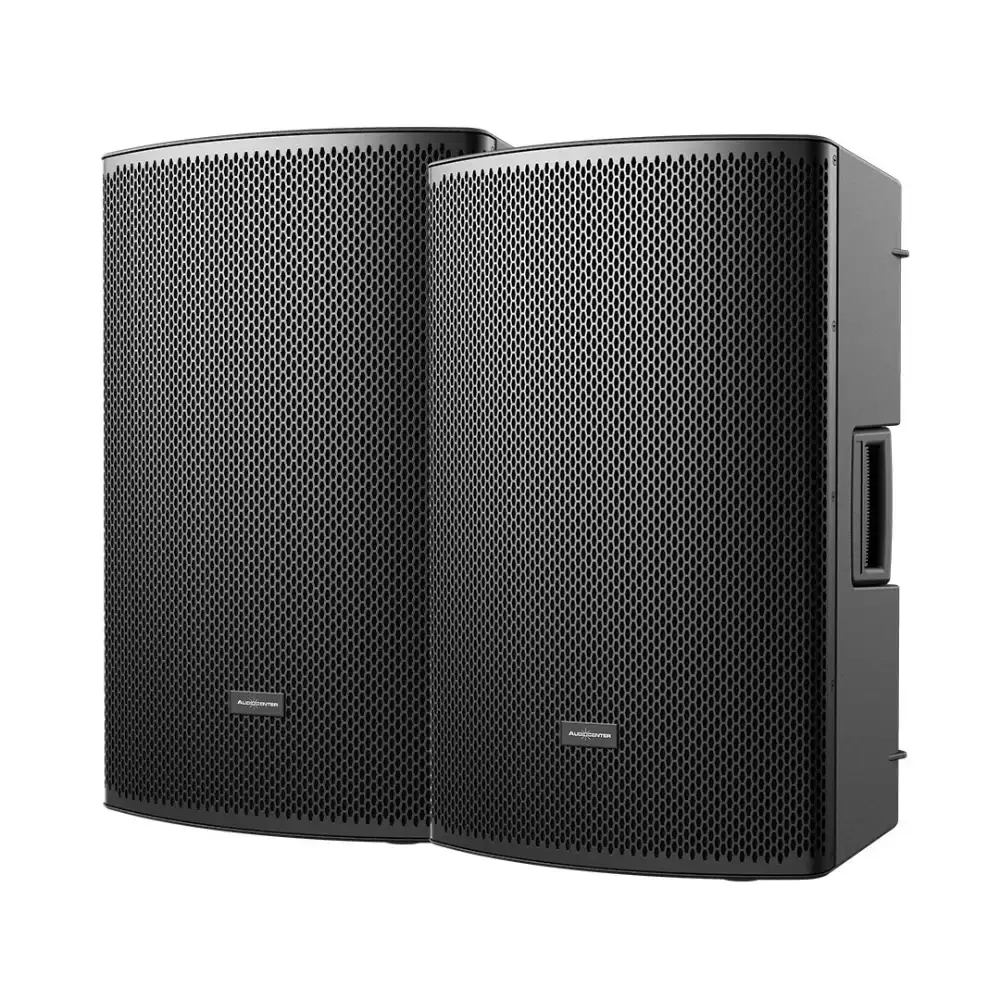

Audiocenter Jam Pack 12
Package includes
2 x 12″ High-Performance Portable Active Speakers

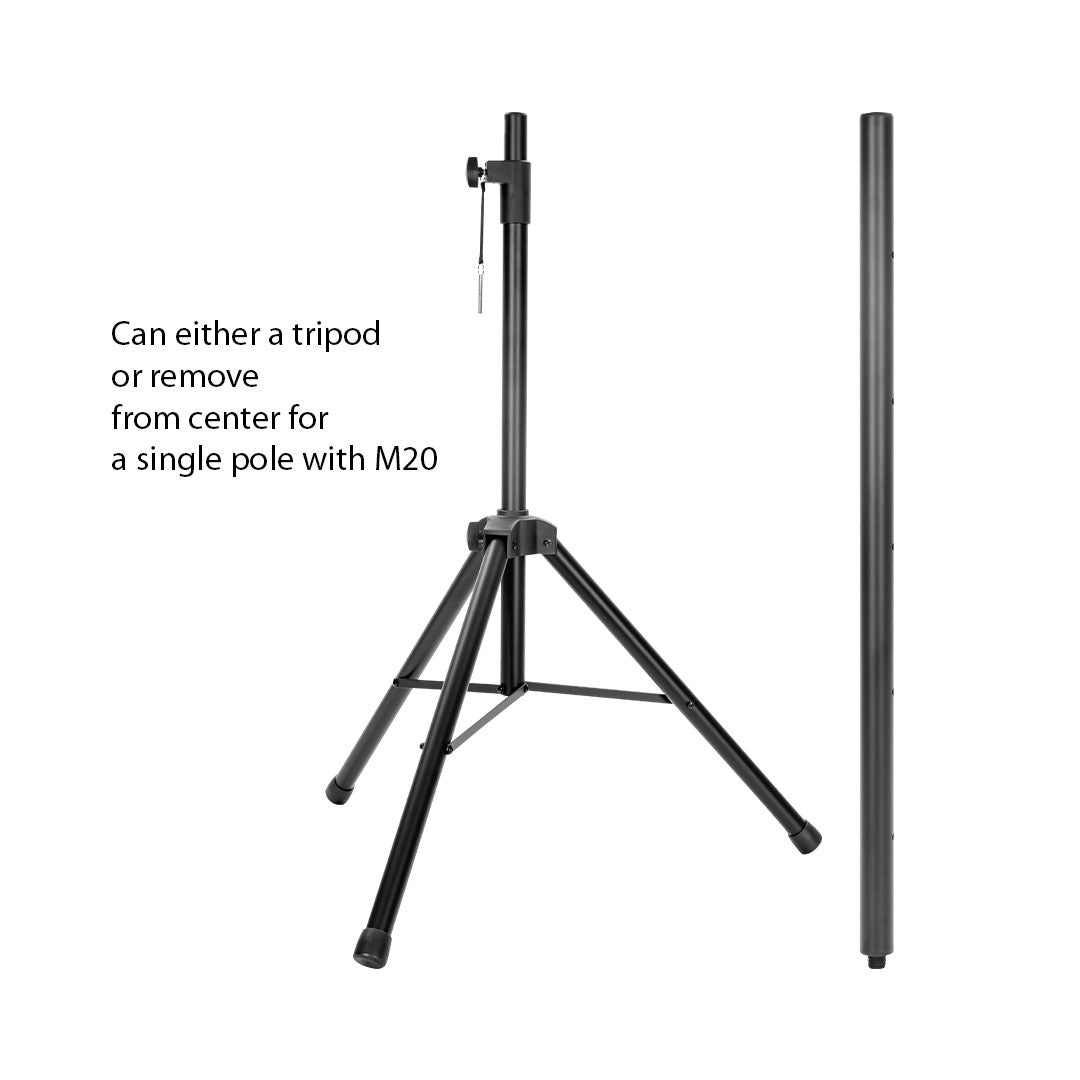

2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.
Overview
Overview
Simple setup
With a stylish and attractive design, the CA Jam Pack 12 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
THEARTRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.
Specifications
Specifications
Type: Single 12” Full Range DSP-Controlled
Frequency Response (-10dB) 55 Hz - 20 kHz
Horizontal Coverage (Symmetrical 90 °
Vertical Coverage 60 °
Maximum Calculated SPL/1m
Continuous 122 dB
Program 125 dB
Peak 128 dB
Drivers
HF:Customised Ferrite Driver, 1.4" Voice Coil, 1.0" Exit
LF:12" Woofer, 2.0" Voice Coil
DSP
Processor:48 kHz Signal Sampling Frequency
Presets Music; Flat; Speech
Amplifier
Amplifier:Class D
Power (RMS Standard): 800 W
Peak Power: 1600 W
Frequency Response (1 W 8, 2 ch) 20 Hz - 20 kHz (± 0.5 dB)
Intermodulation Distortion ≤0.05%
Total harmonic distortion ≤0.05%
Cooling Cooling with fan
Protection
Short Circuit Protection_Yes
Output Overload Protection -
Soft Startup Protection_Yes
Over-Temperature Protection_Yes
Undervoltage Protection -
Signal Input Connector 2 X Female XLR (Mono Jack 6.35); 1 X AUX Input; 1 X Wireless Bluetooth
Signal Output Connector Male XLR Line / MIX Output
Power Input_IEC Power Connector
Working Voltage 220-240 V ~ (±0%, 50/60 Hz)
Power Consumption (1/8 Output Power) 55 W
Cabinet
Material_New PP Composite Material
Painting_Plastic Cabinet
Colour_Black
Grille_Iron Mesh
Handle_1 X Top; 1 X Side
Monitor Angle: Symmetrical 45 ° Monitor Angle
Hanging Hardware: M8 Screw
Pole Mount: Bass Hole 35 mm (Diameter)
Selectable Accessory: Wall Mount Bracket; Protective Bag; Adjustable Coupling Bar
Speaker Dimensions (W X H X D) 381 X 582 X 343 mm
Carton Dimensions (W X H X D) 426 X 665 X 401 mm
Net Weight: 14 kg
Gross Weight: 17 kg
