iRig Stream Solo
iRig Stream Solo
Couldn't load pickup availability
Share
Brand: IK Multimedia
Model: iRig Stream Solo
The original iRig Stream offered groundbreaking features for today's top apps that made it an overnight must-have for millions of creators. Now iRig Stream Solo brings comparable features and connectivity to a new level of affordability.

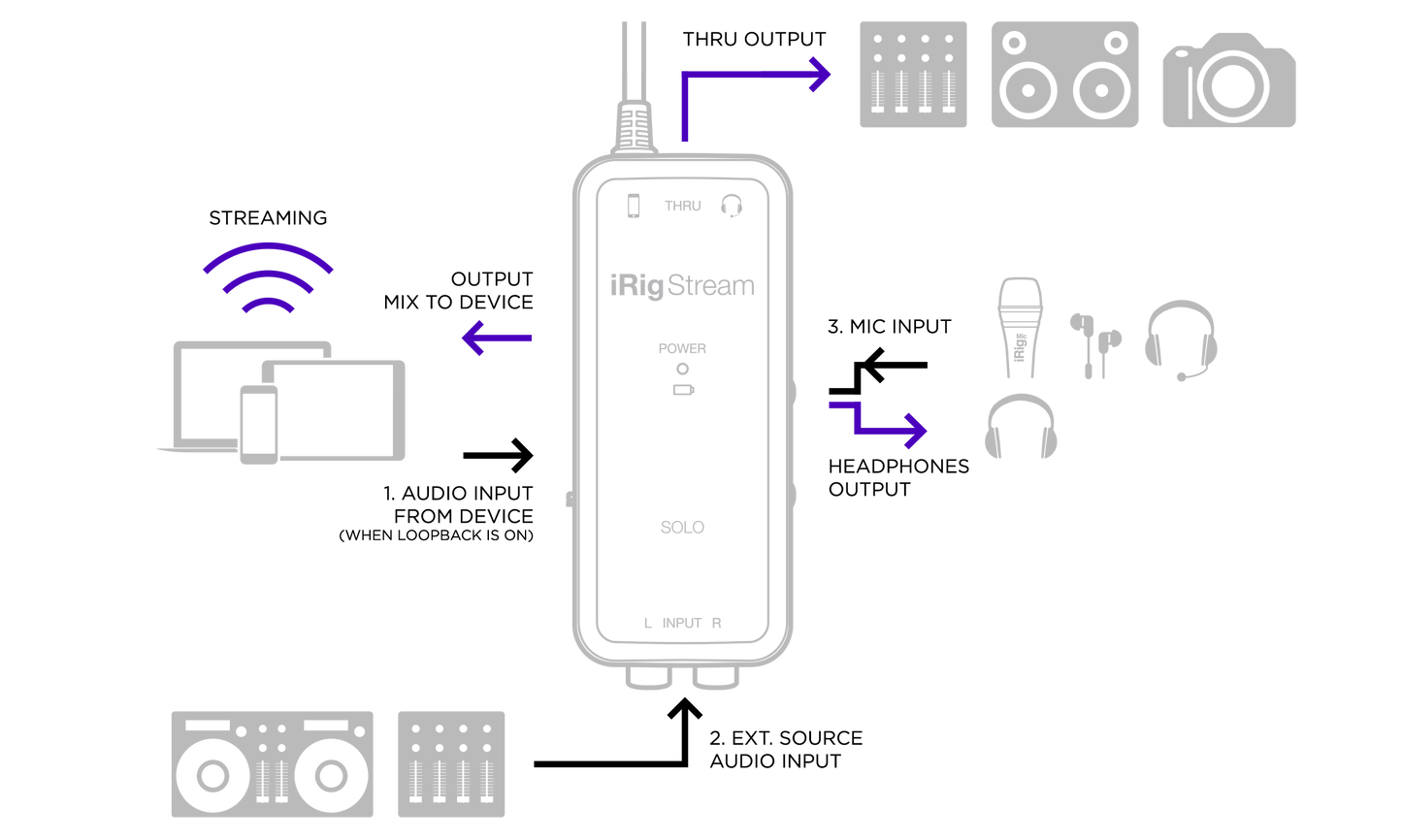

iRig Stream Solo is an easy-to-use audio interface for iPhone*, iPad and Android that lets you connect up to 3 distinct sources and mix them into your stream. Connect mixers or keyboards, your earbuds or iRig mics, and even audio played right on your device, and mix them together into a signal that’s optimized for streaming and sent straight to your favorite apps.
It’s all you need to start streaming in a compact and battery-powered format.
Overview
Overview

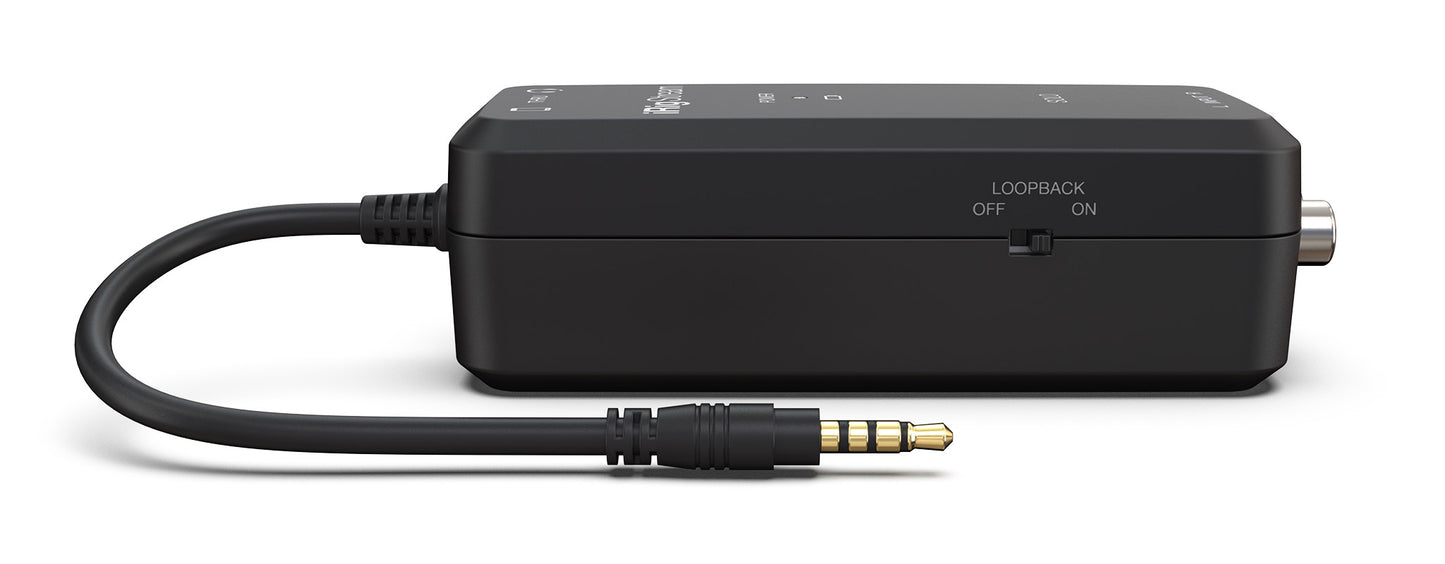

Captive TRRS cable to connect to your device

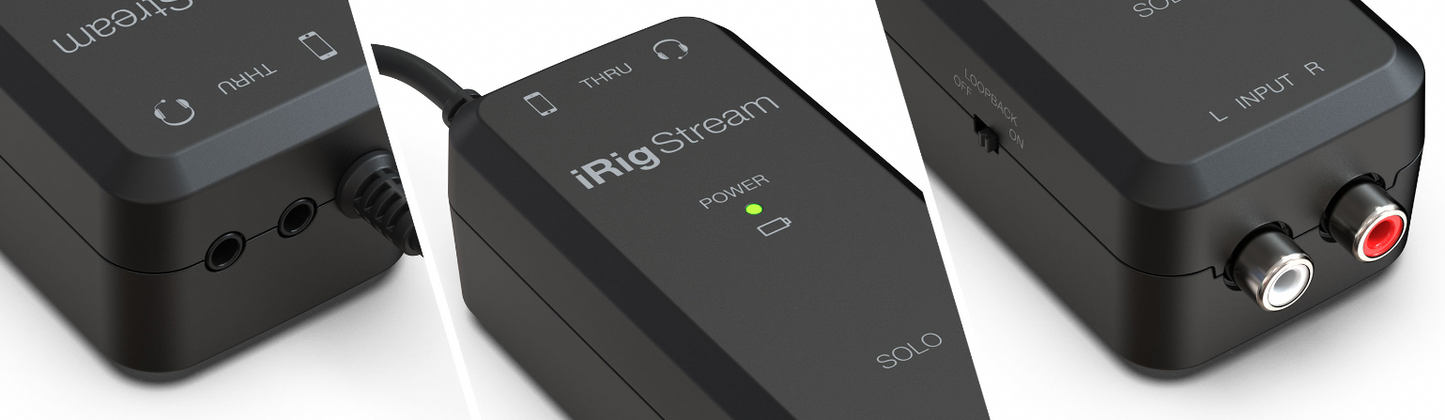

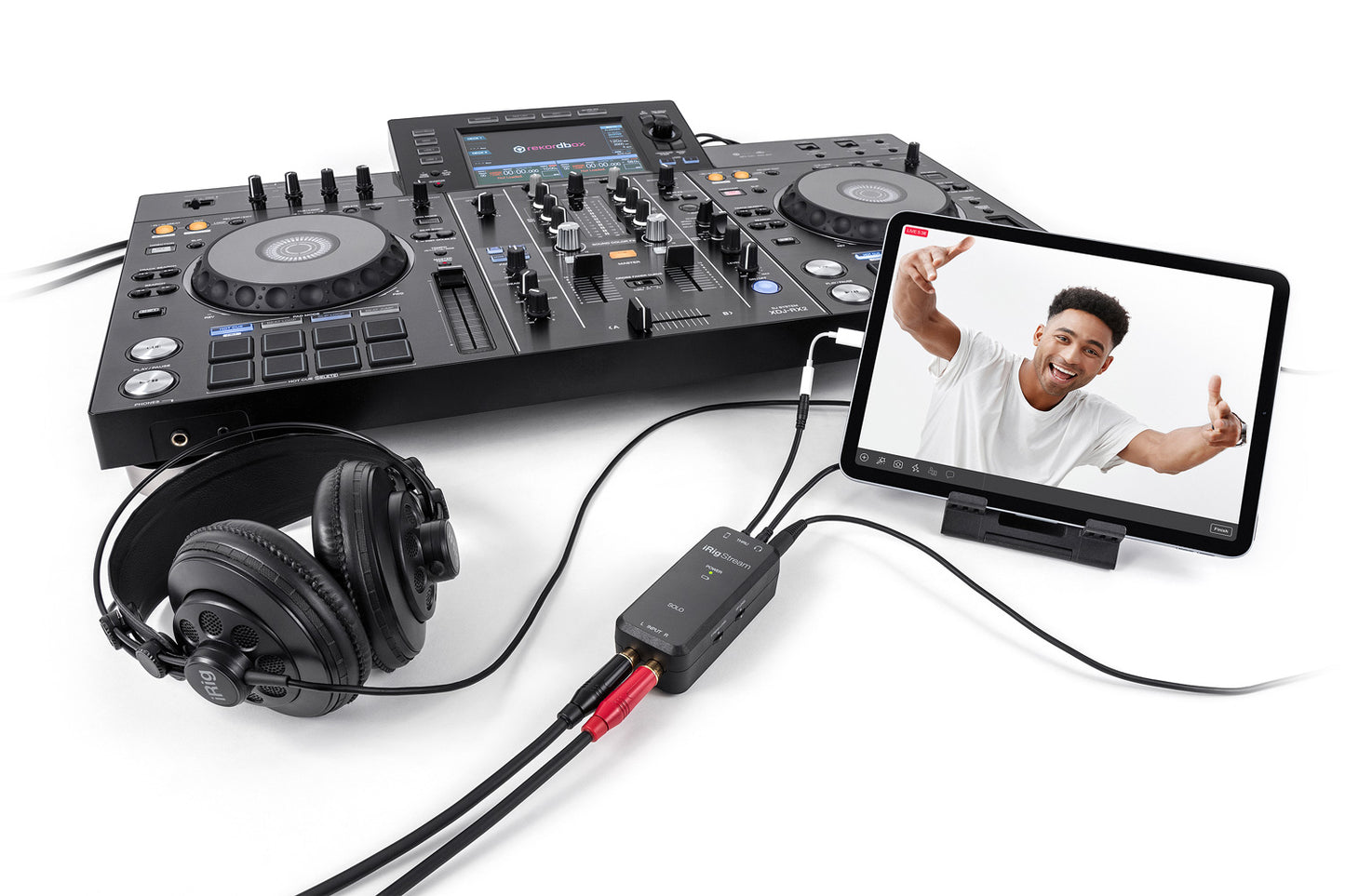

Connect a mixer, DJ setup and more via RCA inputs
Headphone out with integrated mic input
All signals summed to mono for streaming
Loopback mixes incoming signals with your device’s audio
Direct monitoring via the headphone out
1/8” mono Thru line output for cameras, mixers and more
Powered by 2 AA batteries
Works with all your favorite apps
iOS and Android Devices
Compatible with iPhone, iPad, iPod touch and Android devices with 1/8" / 3.5mm jack standard headset input (onboard or via adaptor) compliant with the CTIA/AHJ wiring standard.
Specifications
Specifications
Common
Power: 2x AA batteries
Metering: Battery status LED
Device Connection: captive 1/8” / 3.5 mm TRRS jack - CTIA/AHJ wiring standard
Dimensions: 45 x 105 x 34 mm
Weight (without batteries): 74 g
Line input
Connector: 2x RCA (unbal.) Left/Right
Nominal Input Level: -10 dBV
Head Room: 9 dB
Input Impedance: 15k Ohms
Frequency Response: from 20 Hz to 20 kHz (-3 dB)
Headset/Phones
Connector: 1/8” TRRS jack (CTIA wiring standard)
Supply voltage: >= 2,5 V
Microphone gain: Fixed at 27 dB
Headphone frequency response: from 20 Hz to 20 kHz (-3 dB)
Microphone frequency response: from 50 Hz to 20 kHz (-3 dB)
Headphone Level control: numbered thumbwheel
Thru out
Connector: 1/8” TRS jack
Frequency Response: from 20 Hz to 20 kHz (-3 dB)
Battery Life
50 hours (Alkaline batteries)
Package includes
iRig Stream Solo interface
2x 1.5V AA battery
