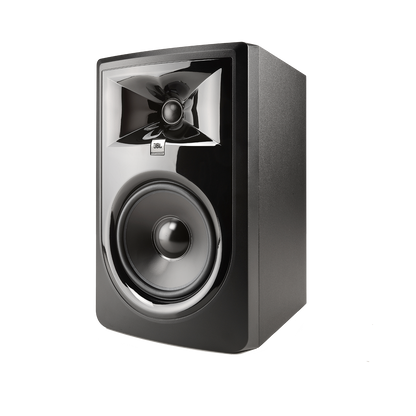

JBL-306PMKII Studio Monitors (Each)

The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

General Specifications
LF Driver Size
165 mm (6.5")
HF Driver Size
25 mm (1")
HF Driver Type
Soft dome
Crossover
1425Hz 4th order acoustic Linkwitz-Riley
Power Configuration
Bi-amplified
HF Driver Power Amp
56 W Class D
LF Driver Power Amp
56 W Class D
Frequency Response
47Hz – 20kHz (±3dB)
Frequency Range
39Hz – 24kHz (-10dB)
Low Frequency Extension
39Hz (-10dB)
Maximum Continuous SPL
92dB
Maximum Peak SPL
110dB
Maximum Peak Input Level
+6dBV / +20.3dBu (-10dBV / +4dBu)
System Distortion Criteria
<10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria
0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Pattern
120° x 90° (horizontal x vertical)
HF Trim Control
-2dB, 0dB, +2dB
Boundary EQ
Boundary EQ -3dB, -1.5dB, 0dB
LF Shelf @ 50Hz
AC Input Voltage
100 – 240VAC (±10%), 50 / 60Hz

Dimensions
Height
361 mm (14.2")
Width
224 mm (8.8")
Depth
282 mm (11.1")
Net Weight
6.1 kg (13.42 lbs)

Design
Enclosure Type
Ported
Enclosure Construction
15mm MDF
Enclosure Finish
Matte black PVC
Baffle Construction
Injection-molded structural ABS

Audio Input
Analog Input Types
1 x XLR female, 1 x TRS female, balanced
Input Sensitivity
92dB / 1m (-10dBV Input)

What's in The Box?
1 x 306P MkII studio monitor
1 x Power cord
1 x Quick setup guide
4 x Peel-off rubber pads
