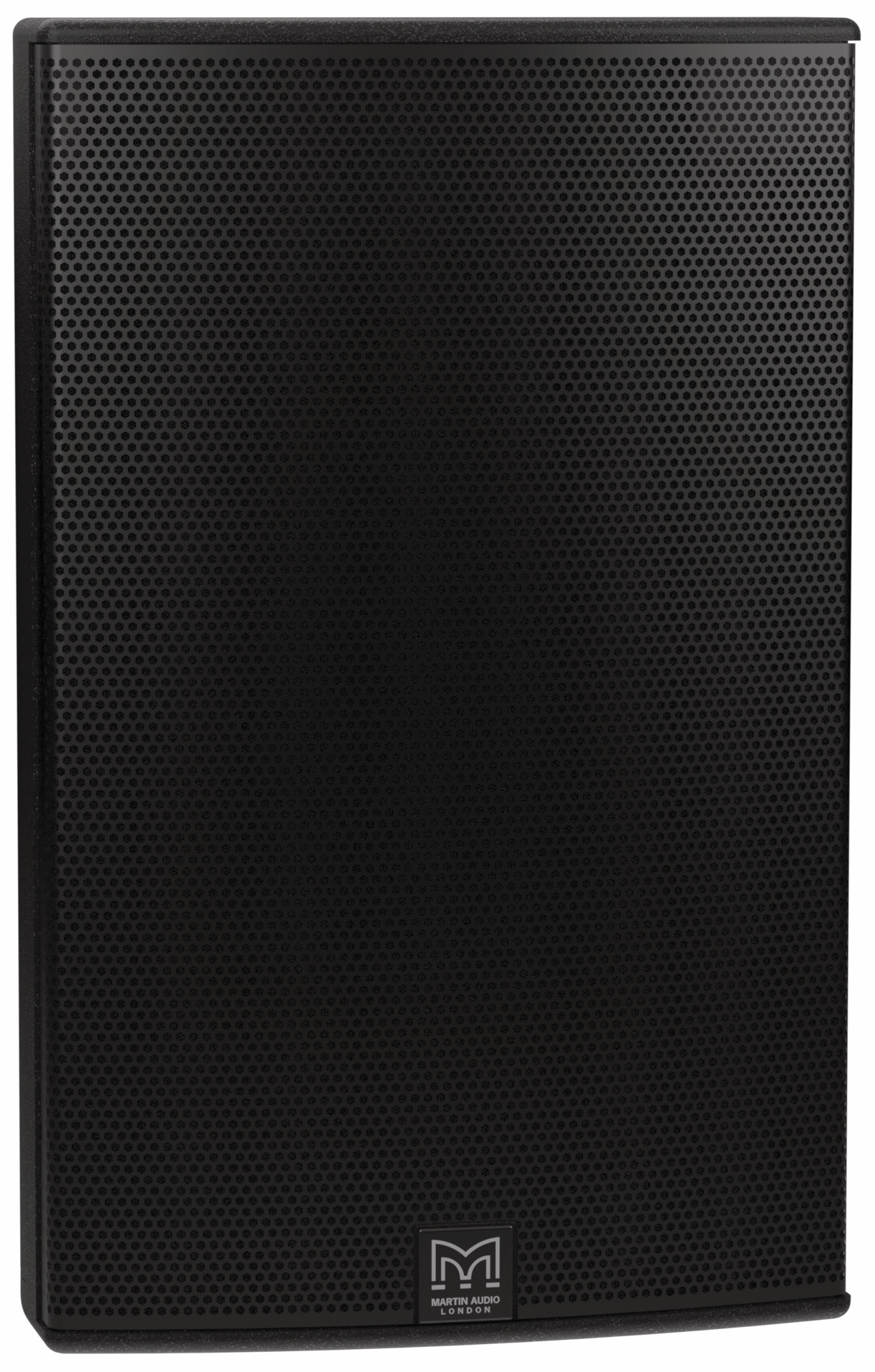

Martin Audio CDD-Live 15 Active Speaker 2500w

Brand: Martin Audio
Model: CDD-Live 15

Enquire here for the latest supplier stock levels and pricing.

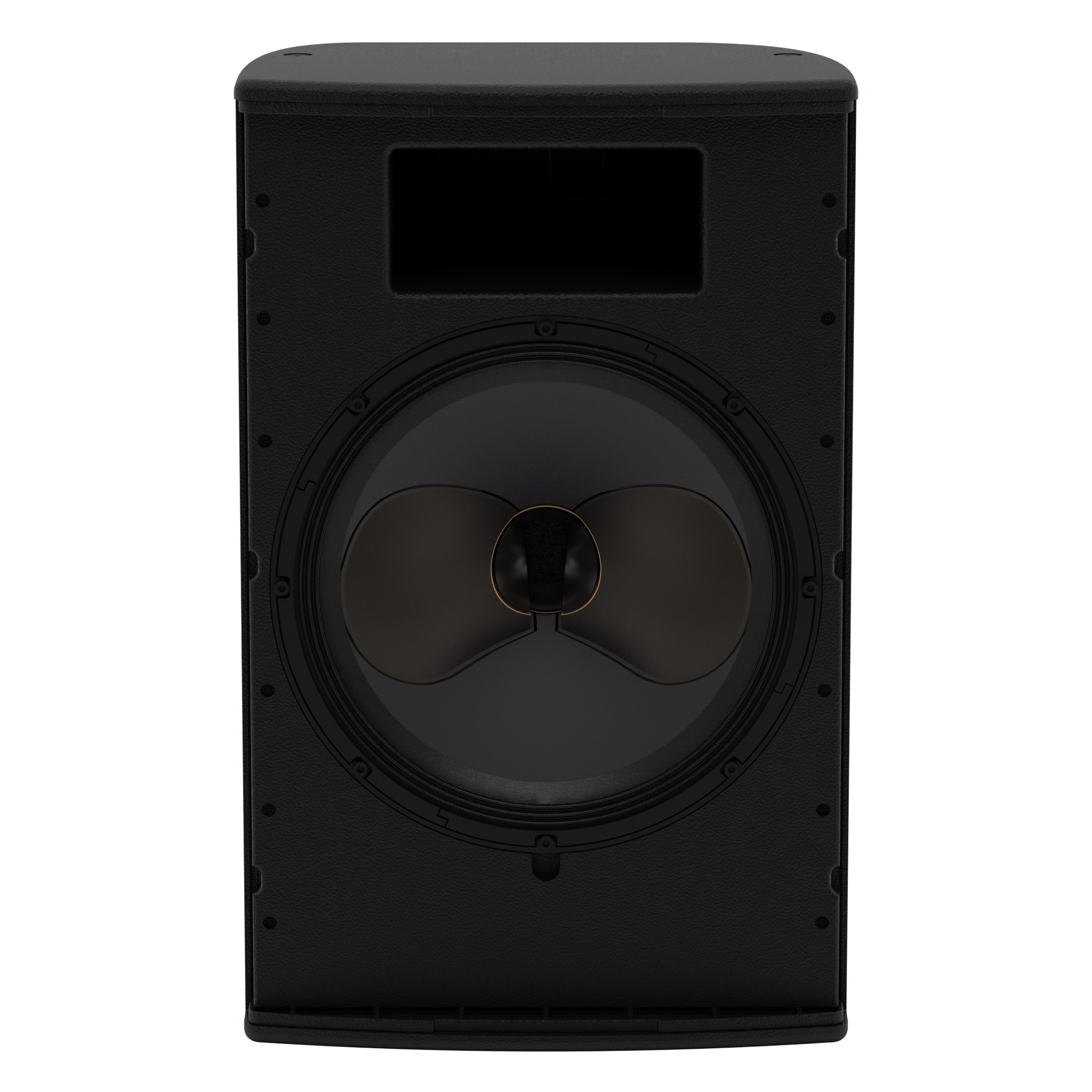

The CDD-LIVE 15 is a self-powered two-way system designed for professional live applications and installations that demand the ultimate in sonic performance from a single enclosure. Its powerful Coaxial Differential Dispersion driver comprises a 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm. With a maximum SPL of 132dB peak at 1 metre, it is the ideal solution for medium-scale touring, theatre and portable live sound applications, as well as premium installations and stage monitor use.
Features

    High-power, self-powered two-way system
    Coaxial Differential Dispersion™ technology
    Onboard Class D amplification and DSP
    Dante™ Digital Audio networking
    Global mains operation with Power Factor Correction
    User-rotatable CDD™ driver
    Vertical and horizontal mounting options
    Tour-grade, multi-angle plywood enclosure
    IP24 rating option with rain cowl
    Comprehensive mounting accessories

Applications

    Live sound reinforcement
    Theatre sound
    Corporate AV events
    Fixed installations in concert halls, ballrooms and HoW
    Stage monitor and sidefill
    Bars and clubs

With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD-LIVE 15 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, and its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs.

A self-powered system, the CDD-LIVE 15 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF + 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.

DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

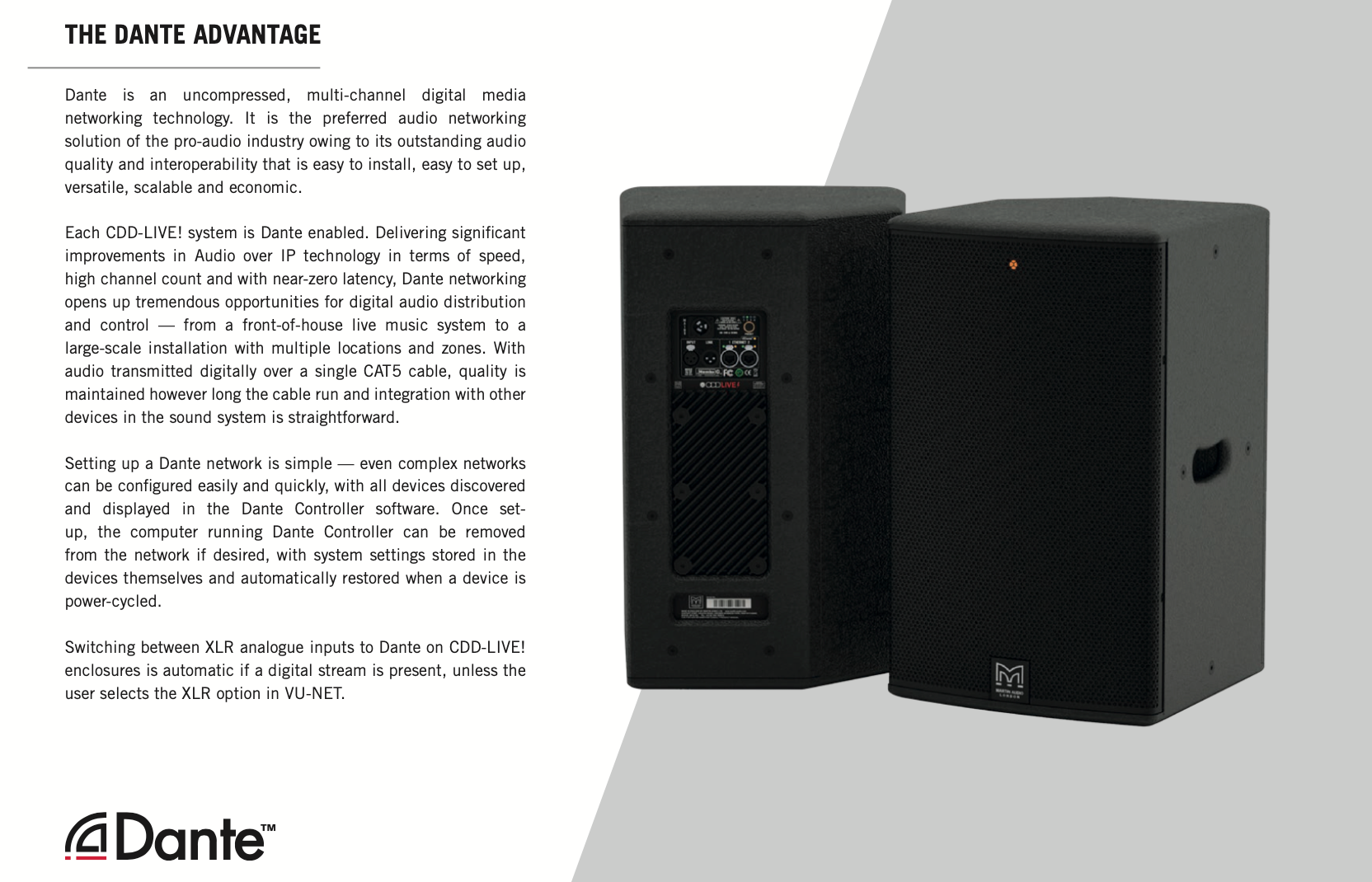

For simple set-ups, ‘plug-and-play’ presets — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. As an alternative to its analogue inputs, the CDD- LIVE 15 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.

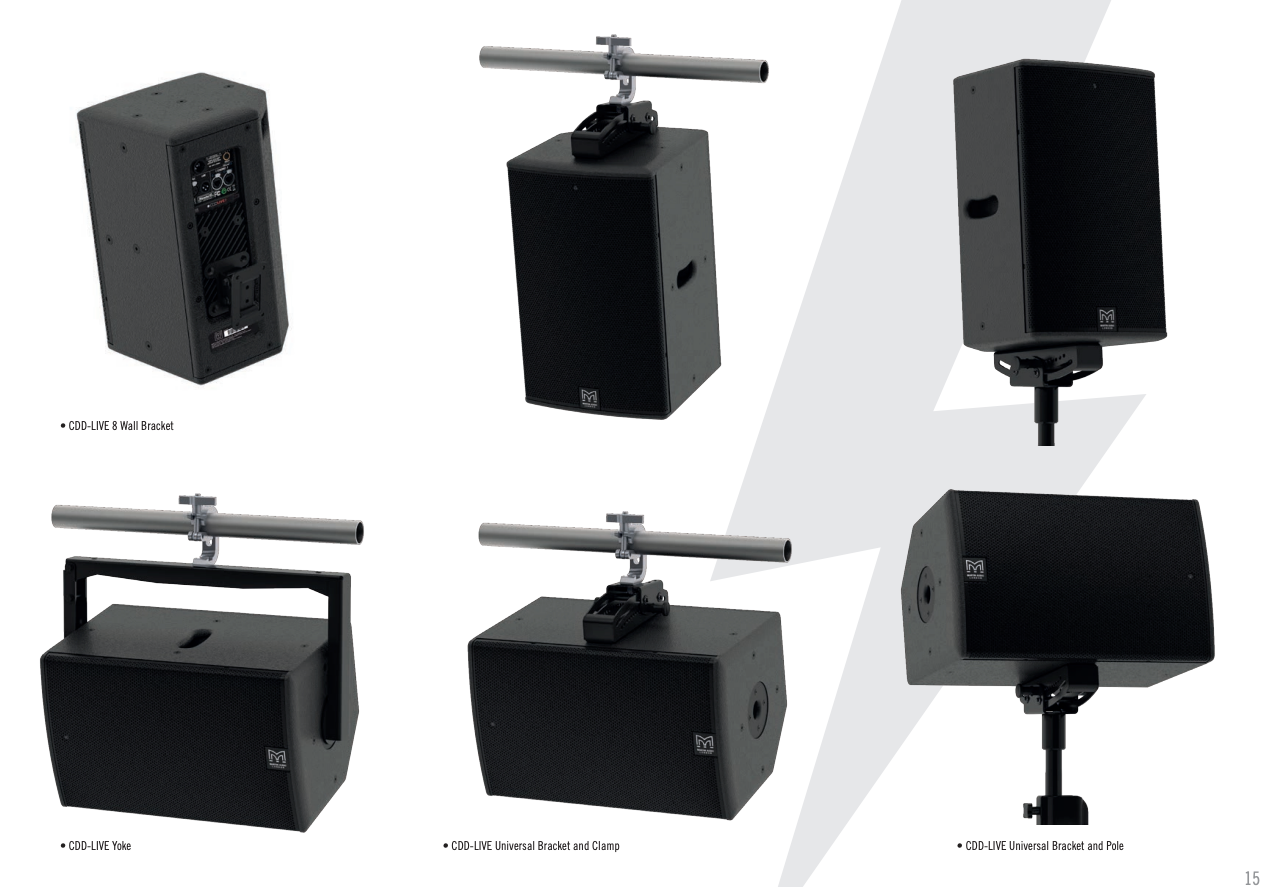

The CDD-LIVE 15 is incredibly versatile. Its multi-angle enclosure can be used in either horizontal or vertical orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The tour-grade enclosure is constructed from multi-laminate plywood and finished in a hard-wearing polyurea coating. Integral fittings include a top-hat for pole mounting and multiple M8 inserts for attachment to a yoke or universal bracket with a wide range of up and down tilt angles.
