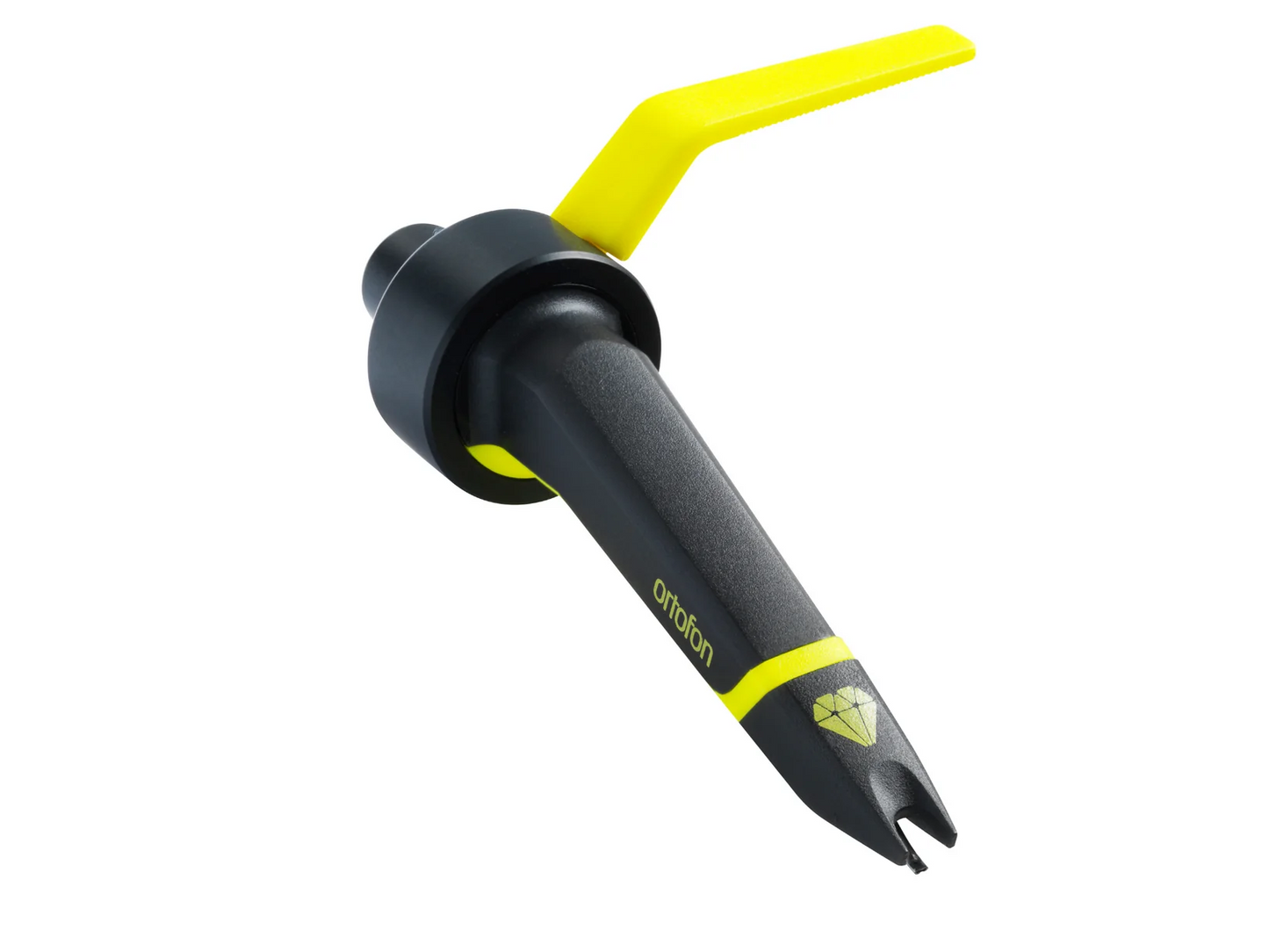

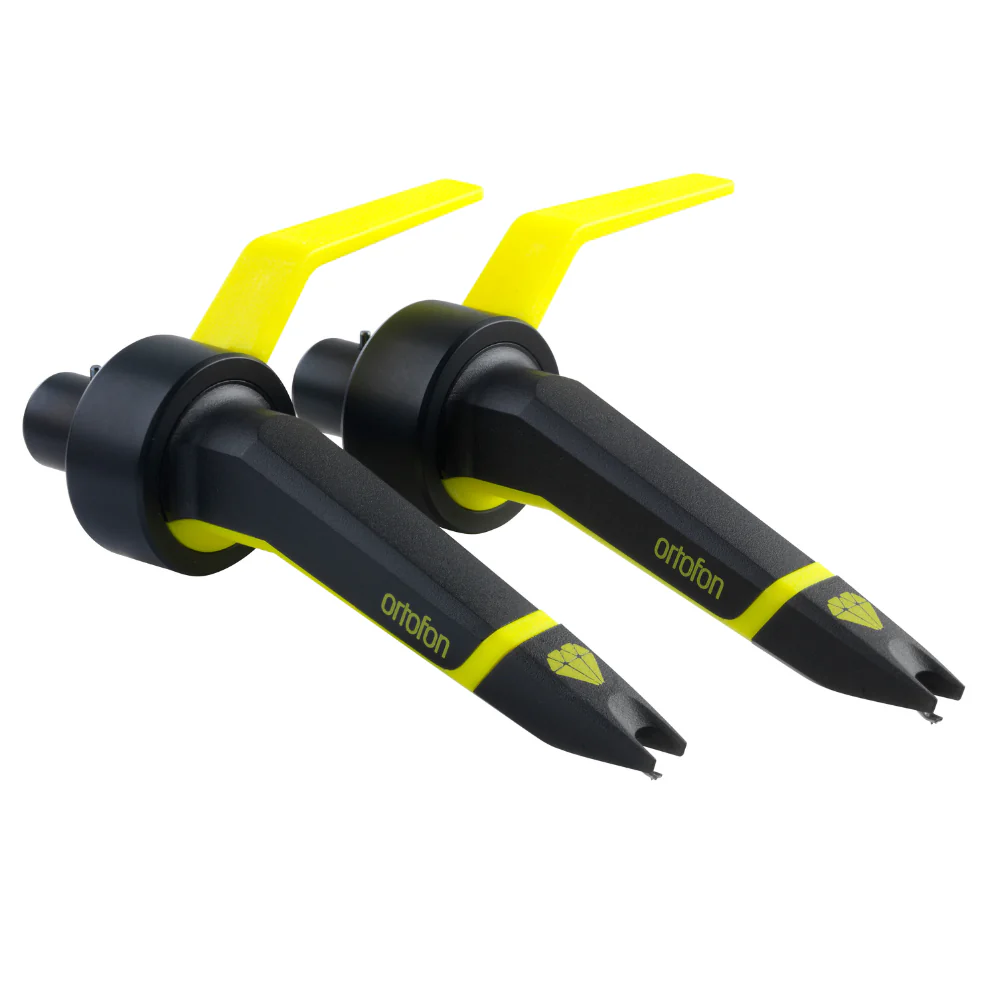

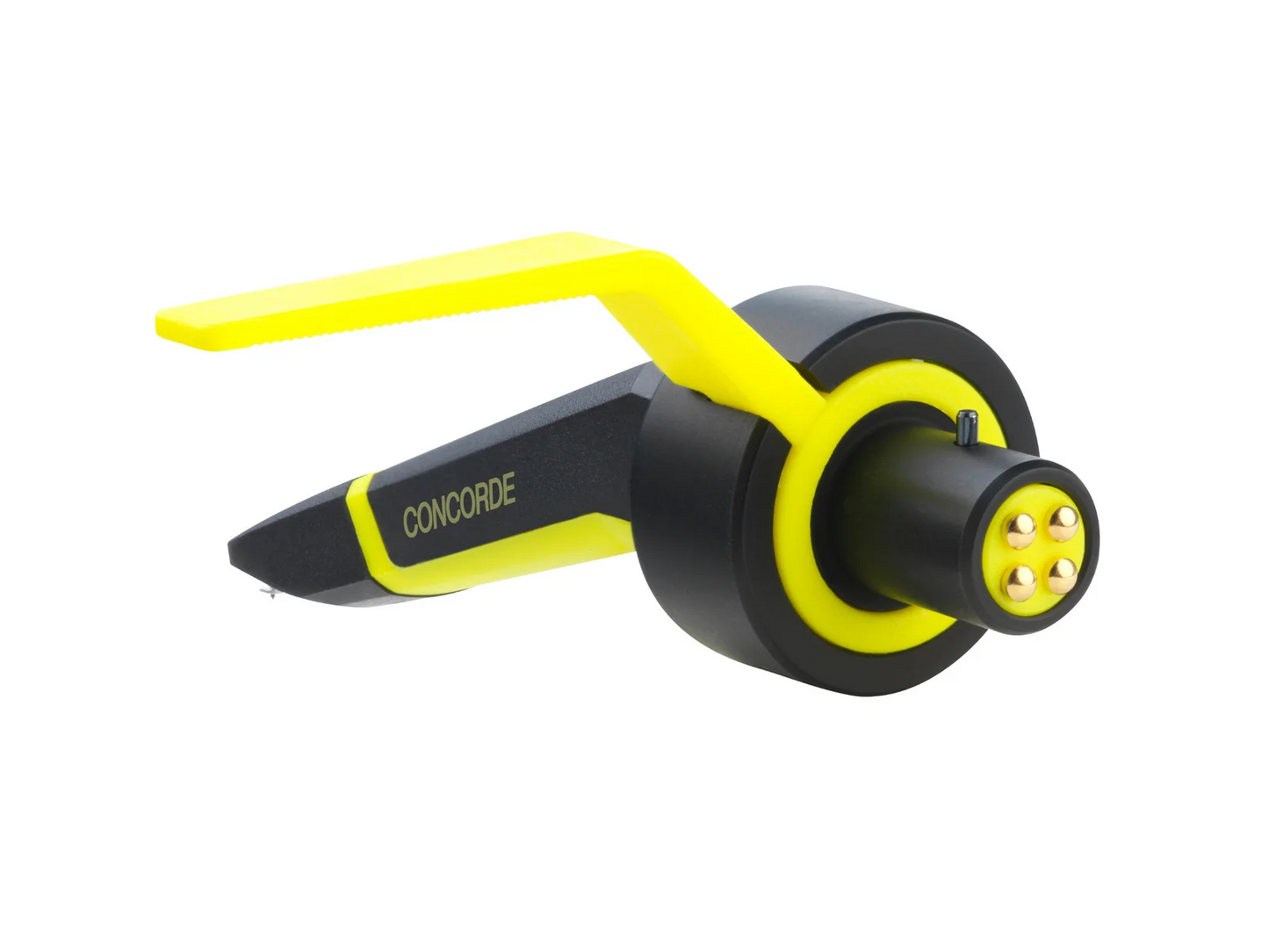

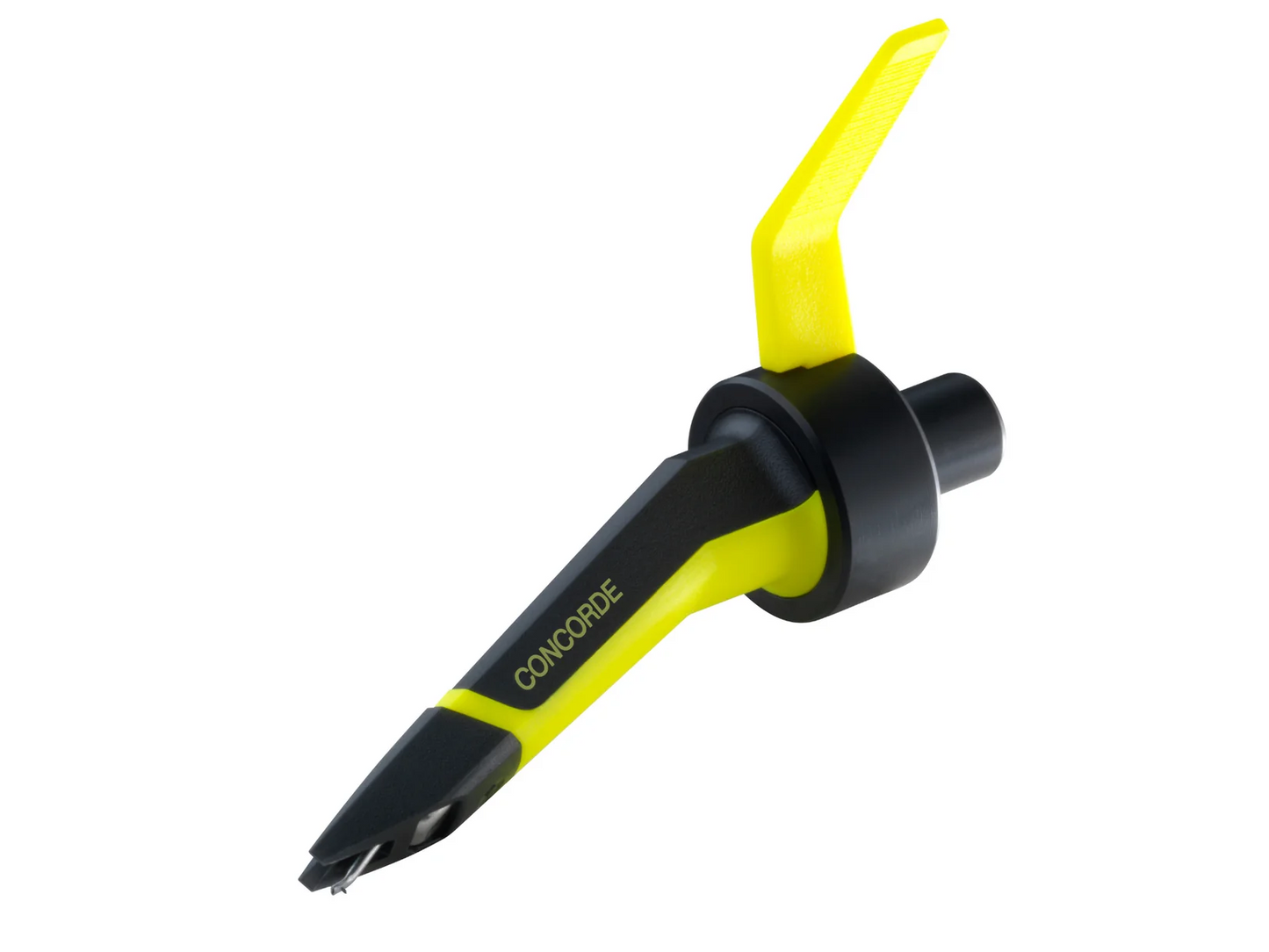

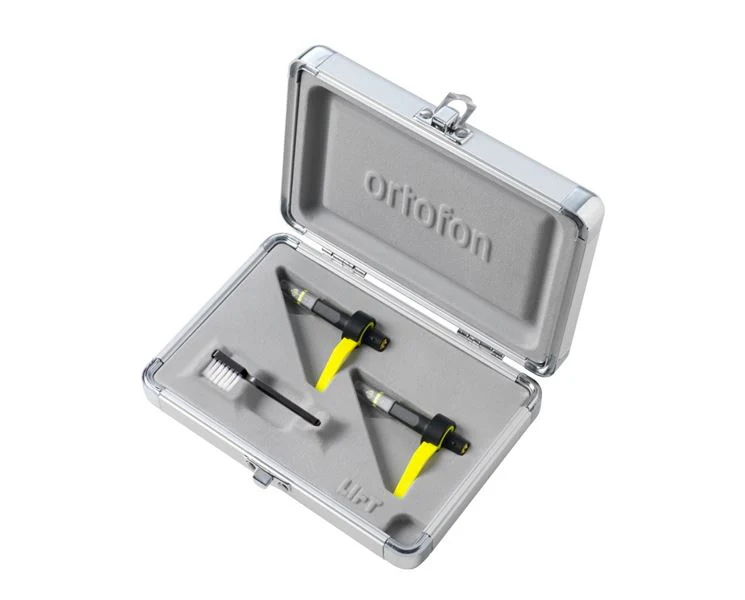

Ortofon Concorde MK2 Club Twinpack

Stylus
The CLUB features a Special Elliptic stylus that allows for detailed sound quality. The Special Elliptic stylus fits better in the groove and has more contact area with the groove itself, extracting more intricate details, than is possible with a Spherical diamond.

Output
The Concorde CLUB presents outstanding sound quality and an increased output of 8 mV, translating into a robust and vibrant audio performance. This heightened output voltage significantly reduces the demand for preamp gain, resulting in a cleaner and more faithful sound reproduction. Additionally, this attribute minimizes susceptibility to feedback, a particularly advantageous feature when performing in dynamic live environments.

The CLUB is also recommended for digitalizing purposes: it provides optimal quality and extracts every last detail from vinyl when transferring vinyl to any digital storage media.

Specifications
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
8 mV
Channel separation at 1 kHz
25 dB
Tracking ability at 315Hz
100 μm
Compliance, dynamic, lateral
14 μm/m N
Cantilever material
Aluminium
Stylus type
Special Elliptical diamond
Stylus tip radius
r/R 13/25 μm
Tracking force range
2 - 4 g
Tracking force, recommended
3 g
Internal impedance, DC resistance
1000 Ohm
Cartridge weight
18,5 g
Recommended load resistance
18,5 g
Internal inductance
650 mH
Recommended load capacitance
200-600 pF
Replacement stylus
Stylus CC MKII Club
