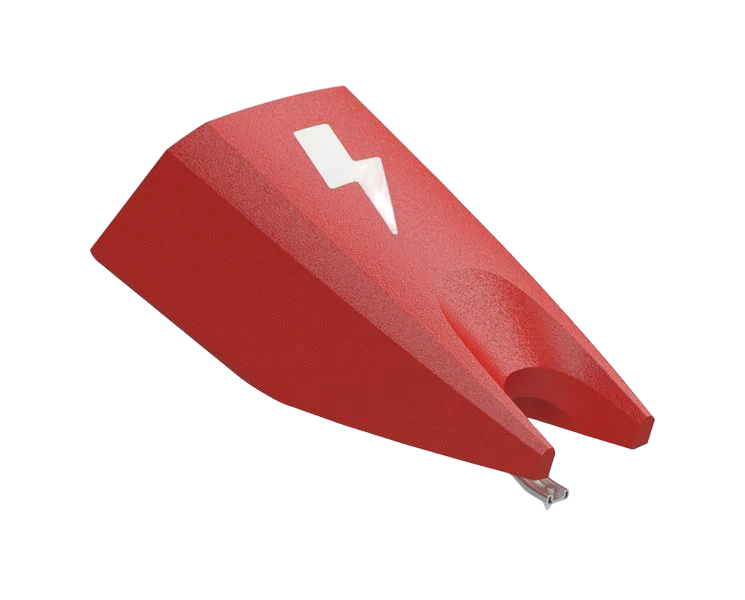

Ortofon Concorde MK2 Digital Replacement Stylus

Ortofon Concorde MK2 Digital Replacement Stylus
Brand: Ortofon

PLEASE NOTE THAT ORTOFON MK2 STYLUS DOES NOT FIT ONTO ORTOFON MK1 CARTRIDGES

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Larger, wider and more robust stylus body
Easier to grip and handle
Better fix by metal spring
Tactile feedback of correct mount
Large stylus viewing cut-out

Specifications:
Output voltage at 1000Hz, 5cm/sec. – 10 mV
Channel balance at 1kHz – 1 dB
Channel separation at 1kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force – 100 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g
Concorde cartridge weight – 18.5 g
Recommended exclusively for Concorde MKII DIGITAL
