Pioneer DJM-S5

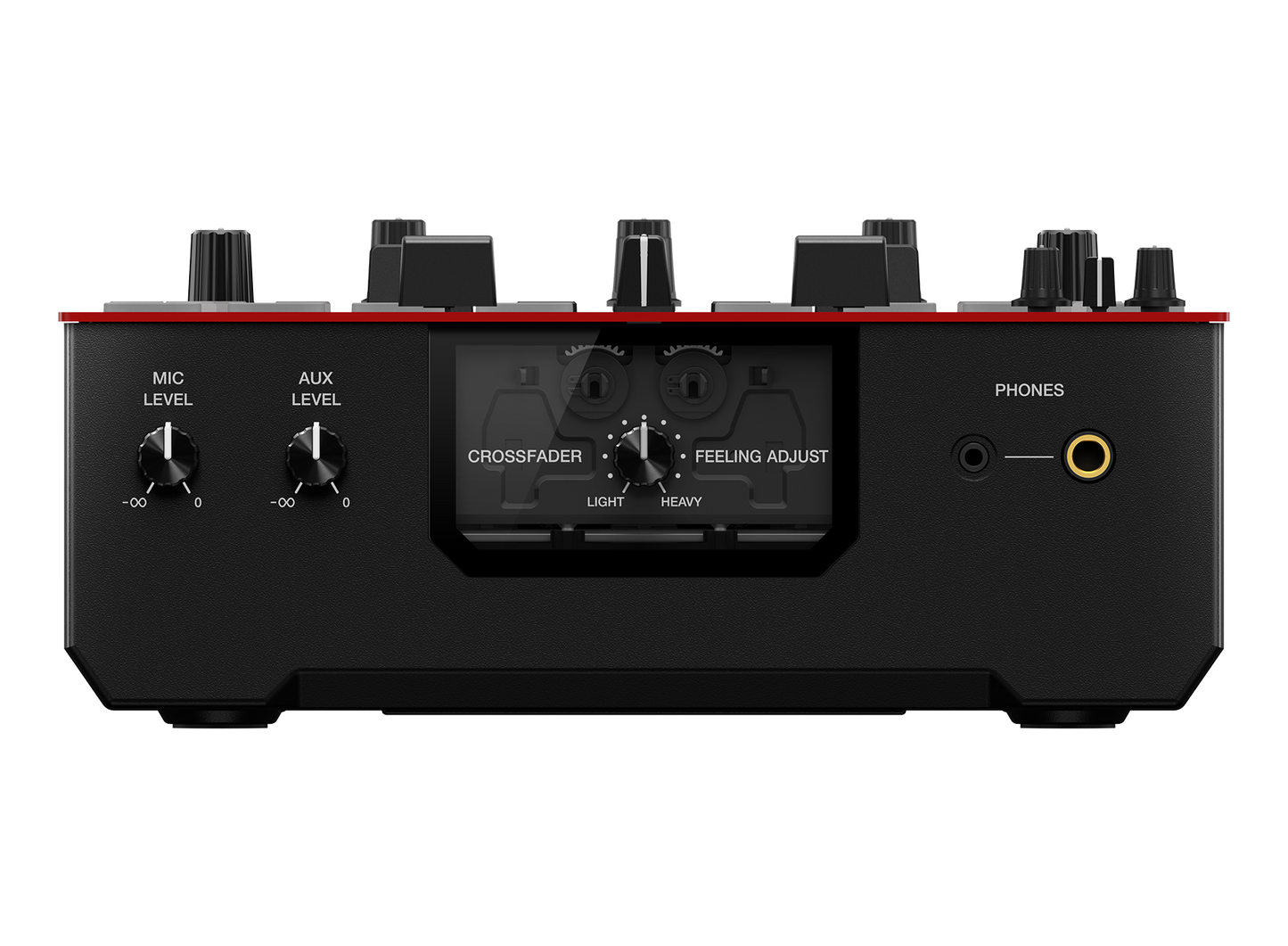

MAGVEL FADER PRO crossfader
Find your perfect scratch feeling with the popular MAGVEL FADER PRO crossfader, which features Feeling Adjust so you can tweak the “weight” and get the level of resistance you like best. You can be confident in the fader’s robust design too; the knob mounting axis is highly rigid in the vertical direction so it can handle energetic scratch techniques.

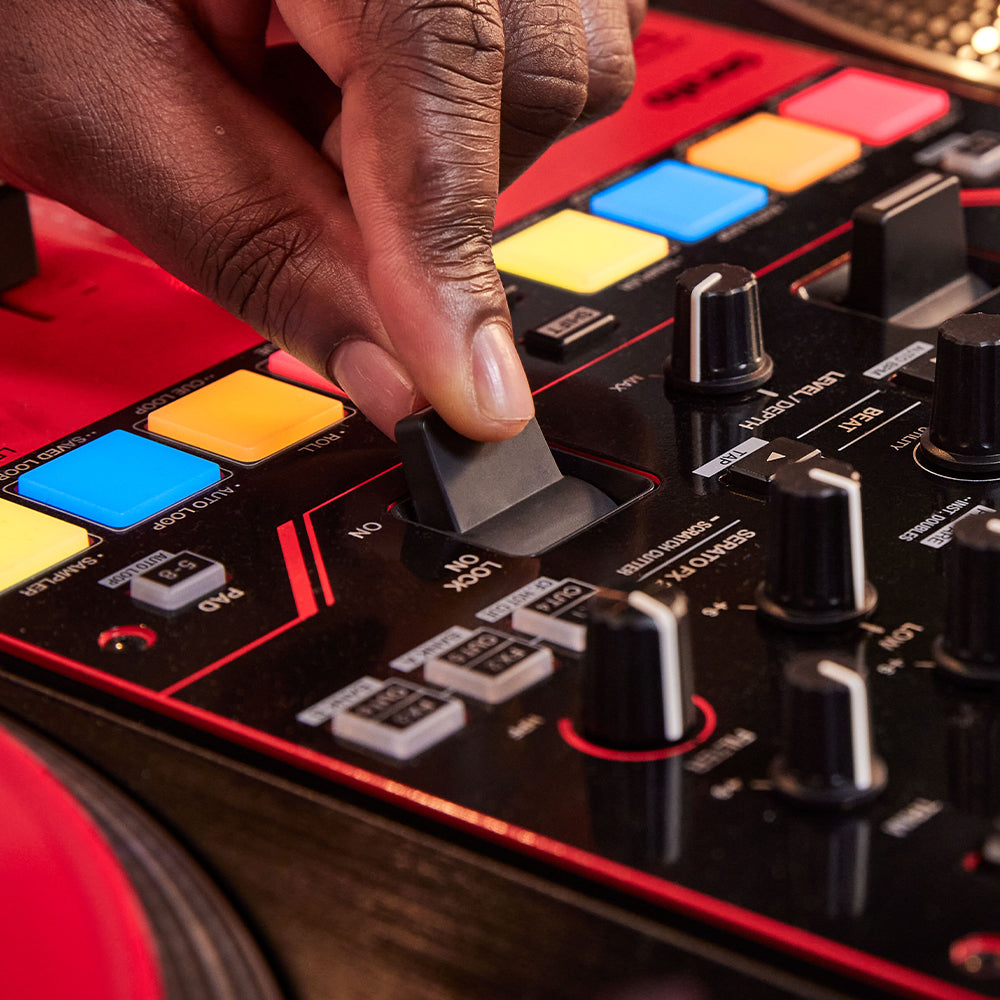

Effect levers
Use the 2 large effect levers to control up to 57 effects in Serato DJ Pro (including paid Expansion Packs). The levers are the same size as those on the flagship DJM-S11 and you can hold them down or release them to turn the effect on / off, or lock them on so your hands are free to browse and scratch tracks while the effect is still applied. There are also 2 banks where you can save effects, giving you quick access to your favorites.

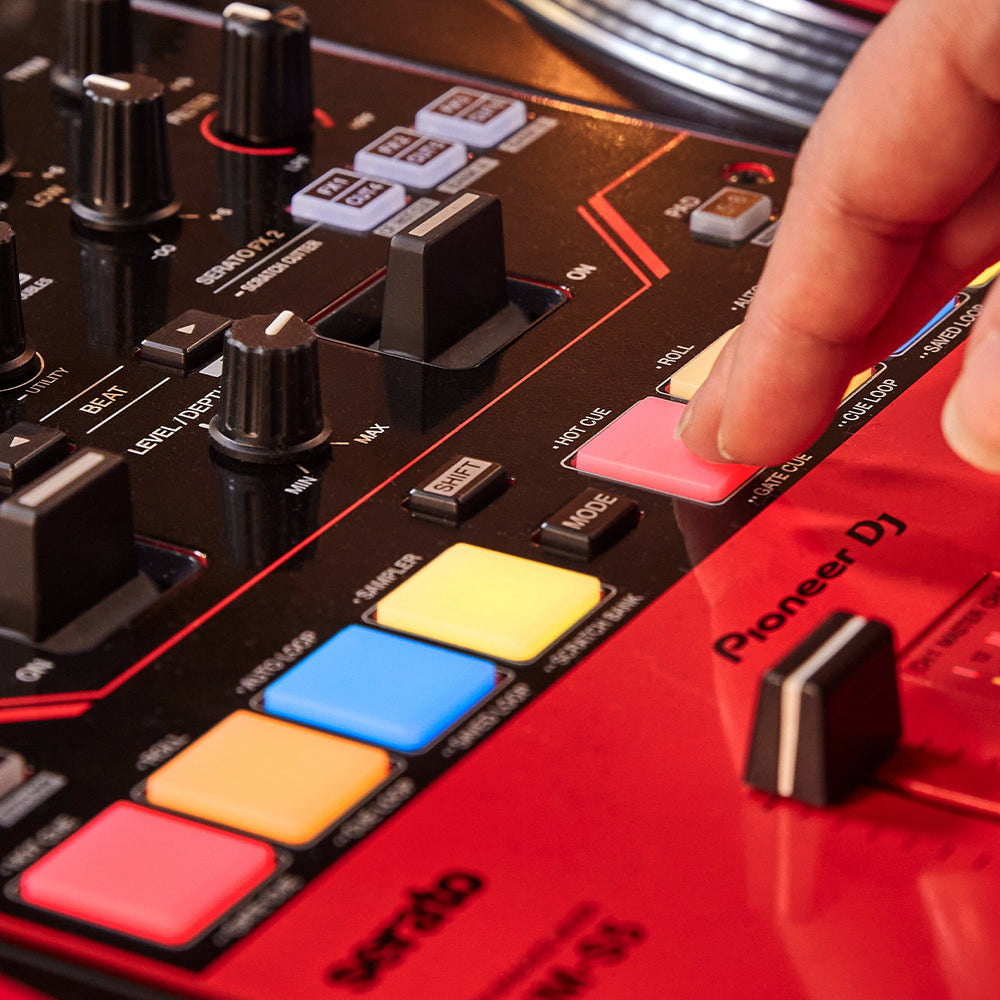

Performance Pads
Get creative and experiment with 13 pad modes including Hot Cue and Sampler. Using the 4 Performance Pads on each deck, which measure 20.6 mm x 20.6 mm, you can trigger samples and find all kinds of new ways to “remix” your tracks live and add texture to the music.

Scratch Cutter
Start scratching straight away – even if you’ve never tried before. Simply choose one of the 6 cutting patterns and turn on the Scratch Cutter function with the effects lever, then move the control vinyl or jog wheel (when using DVS control) forward and backward on the deck and the DJM-S5 will do the rest. The mixer applies a cutting effect to the music in perfect time, emulating the popular transformer scratch technique without you moving the crossfader. This feature offers a great way to start learning to scratch; you can concentrate on getting your timing right with the control vinyl before moving on to the more challenging technique of using the crossfader.

Crossfader Hot Cue
Turn on the Crossfader Hot Cue feature and you can quickly move the crossfader to create scratch-like sounds with a sample or track. Every time you move the fader away from the edge, the track or sample on the relevant deck plays from the most recent Hot Cue point. So, you can quickly repeat the action to rapidly play the Hot Cue in the rhythm you use to move the crossfader – creating a scratch-like sound without the need to move the control vinyl on the deck.

USB bus power and standalone mixer versatility
The DJM-S5 is the first-ever Pioneer DJ mixer that you can power via the USB connection to your computer. Enjoy the extra flexibility this offers and, if you use portable turntables, the freedom to practice and perform literally anywhere you can carry your decks to: your garden, a park, or even the beach. It works as a standalone mixer too, so you can play music from a variety of sources such as analog vinyl records. And even though the mixer is USB powered, it produces a wide-ranging bright sound that brings out the best of all music genres.

Bundled DJ software - Serato DJ Pro
Serato DJ Pro Expansions - Unlocks Serato DVS
MAGVEL FADER PRO - Yes
On-Board FX - No
Performance Pad size - 20.6 x 20.6 mm
Performance Pad type - Click
USB Bus-powered - Yes
Scratch support feature - SCRATCH CUTTER, CROSSFADER HOT CUE

MIDI Control - Assignable
Compatible DJ Software - Unlocks Serato DJ Pro
Software System Requirements - Visit serato.com for its
specifications.

In the box::
DJM-S5
USB cable
Quick Start Guide
Precautions for Use
Warranty (for some regions)

*Dimensions:
Width - 245 mm
Height - 107.9 mm
Depth - 363.5 mm
Weight - 3.4 kg

*S/N Ratio USB:
108 dB (USB)
94 dB (LINE)
82 dB (PHONO)
75 dB (MIC)
94 dB (AUX)

*Power Consumption - 5V/500mA
*Distortion
0.003 % (USB)
0.007 % (LINE)

*Level Meter Size - 7 segmentChannels:
*EQ/ISO:
3 band
*EQ/ISO Range
–∞ dB to +6 dB
Channels - 2
Sound Color FX - Filter
*Mic Connection - XLR / 1/4-inch Combo Jack
*Sound Card
Connection - USB (Type-C)
Sample Rate - 24 bit
Frequency - 48 kHz

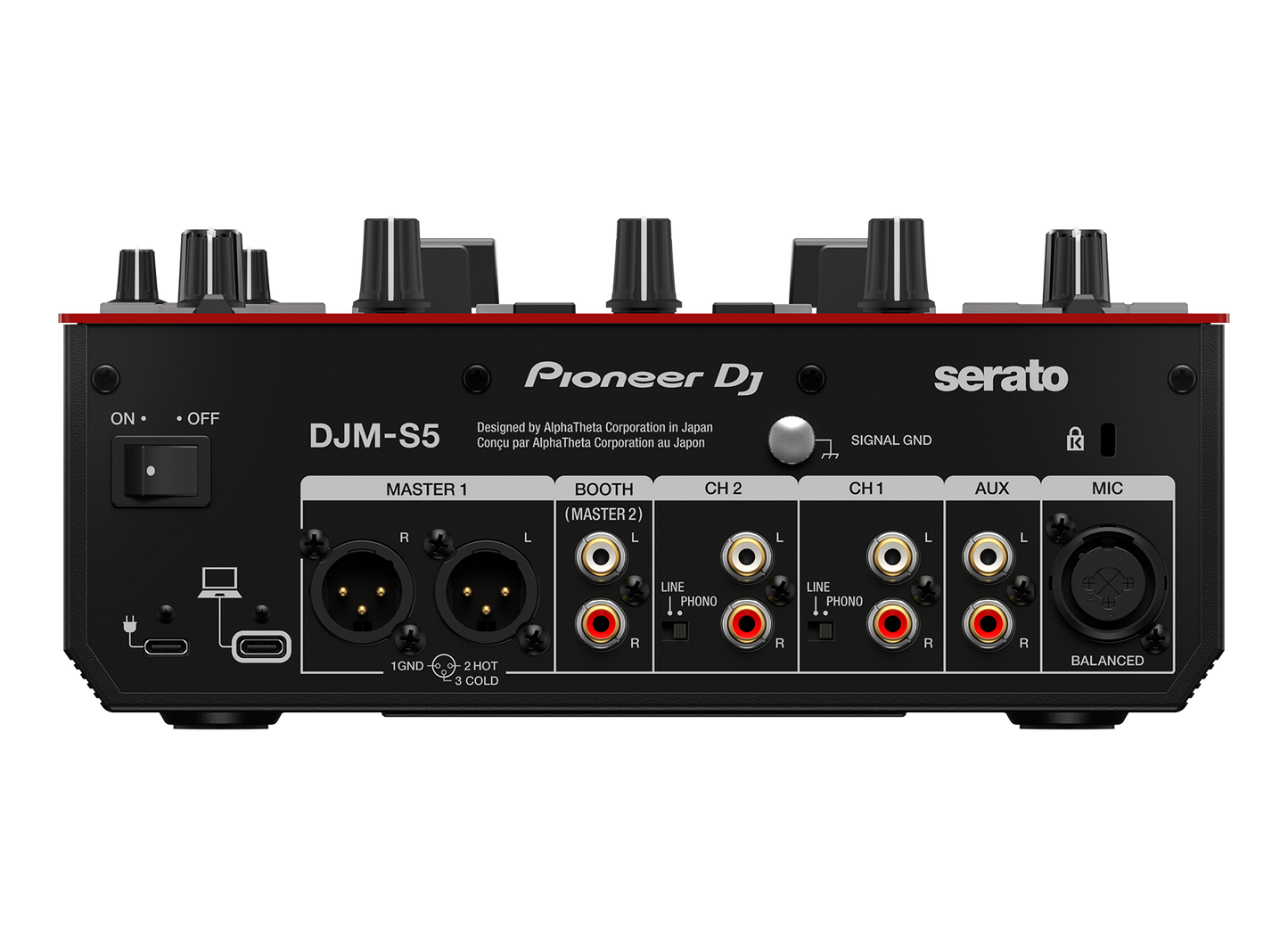

*Terminals
Inputs
2 PHONO/LINE (RCA)
1 MIC (XLR & 1/4 inch Combo Jack)
1 AUX (RCA)
Outputs
1 MASTER (XLR)
1 BOOTH/MASTER (RCA)
2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
USB
2 sets USB Type-C port (PC/Mac connection & power supply ×1, Only power supply ×1)
