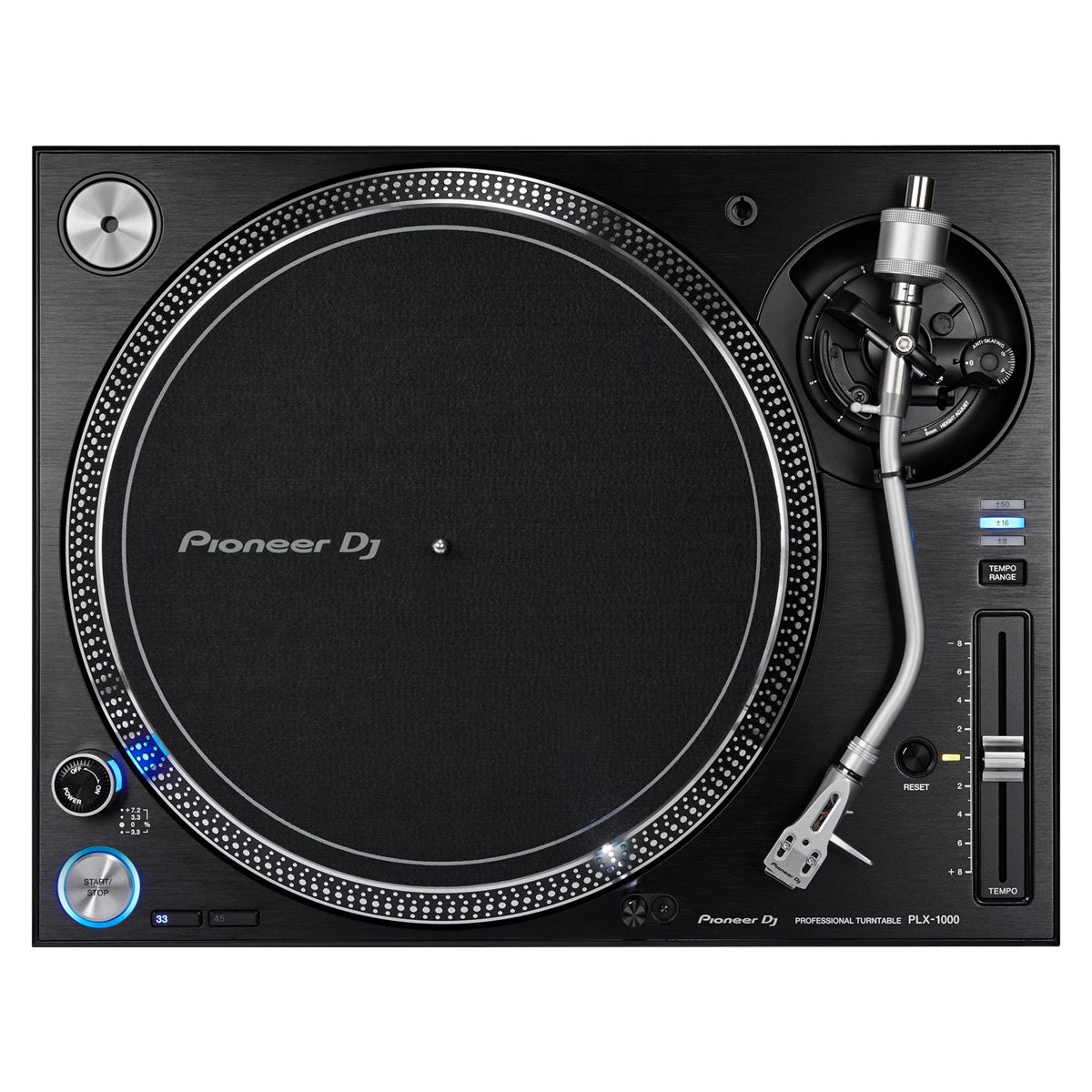

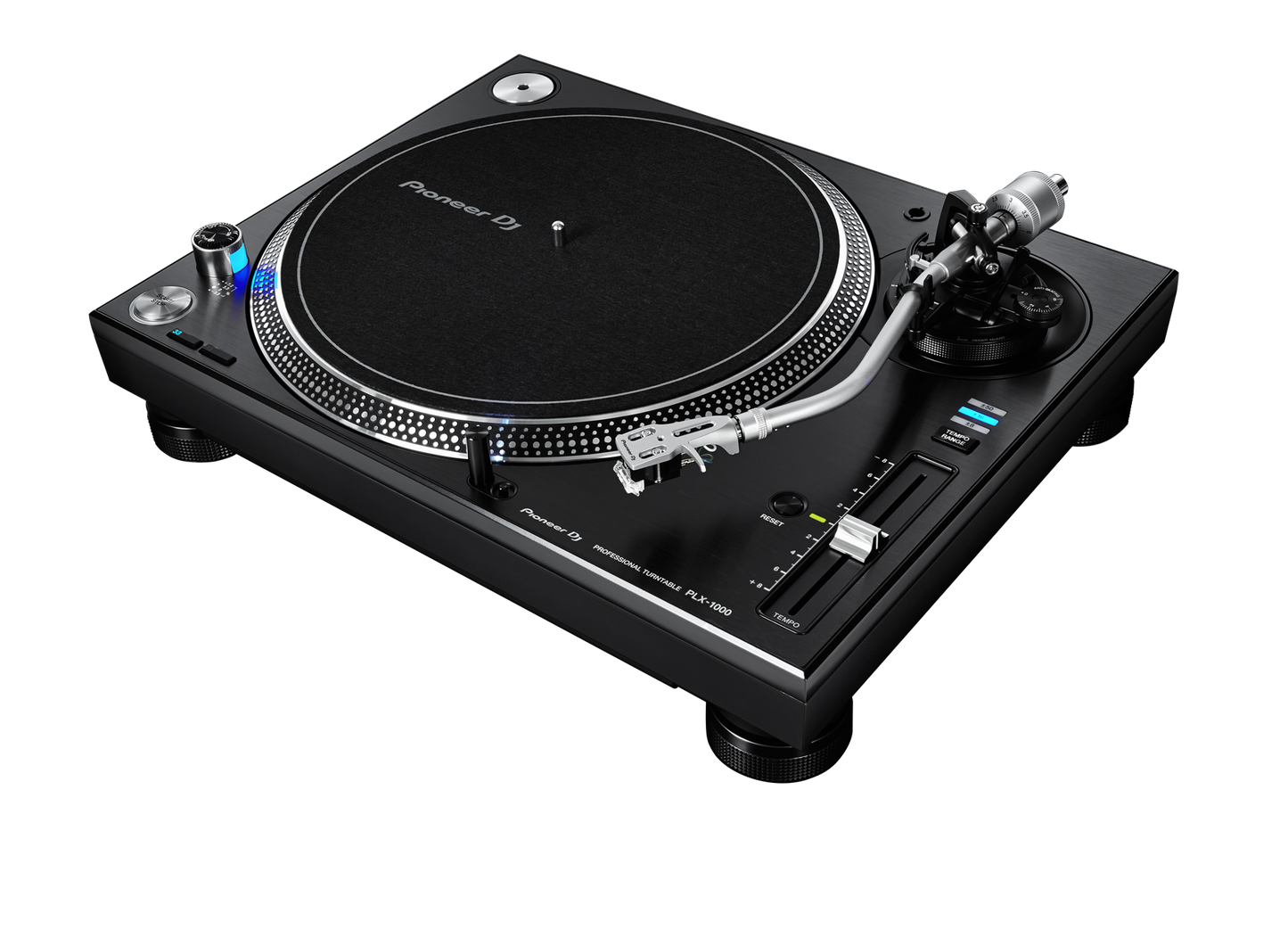

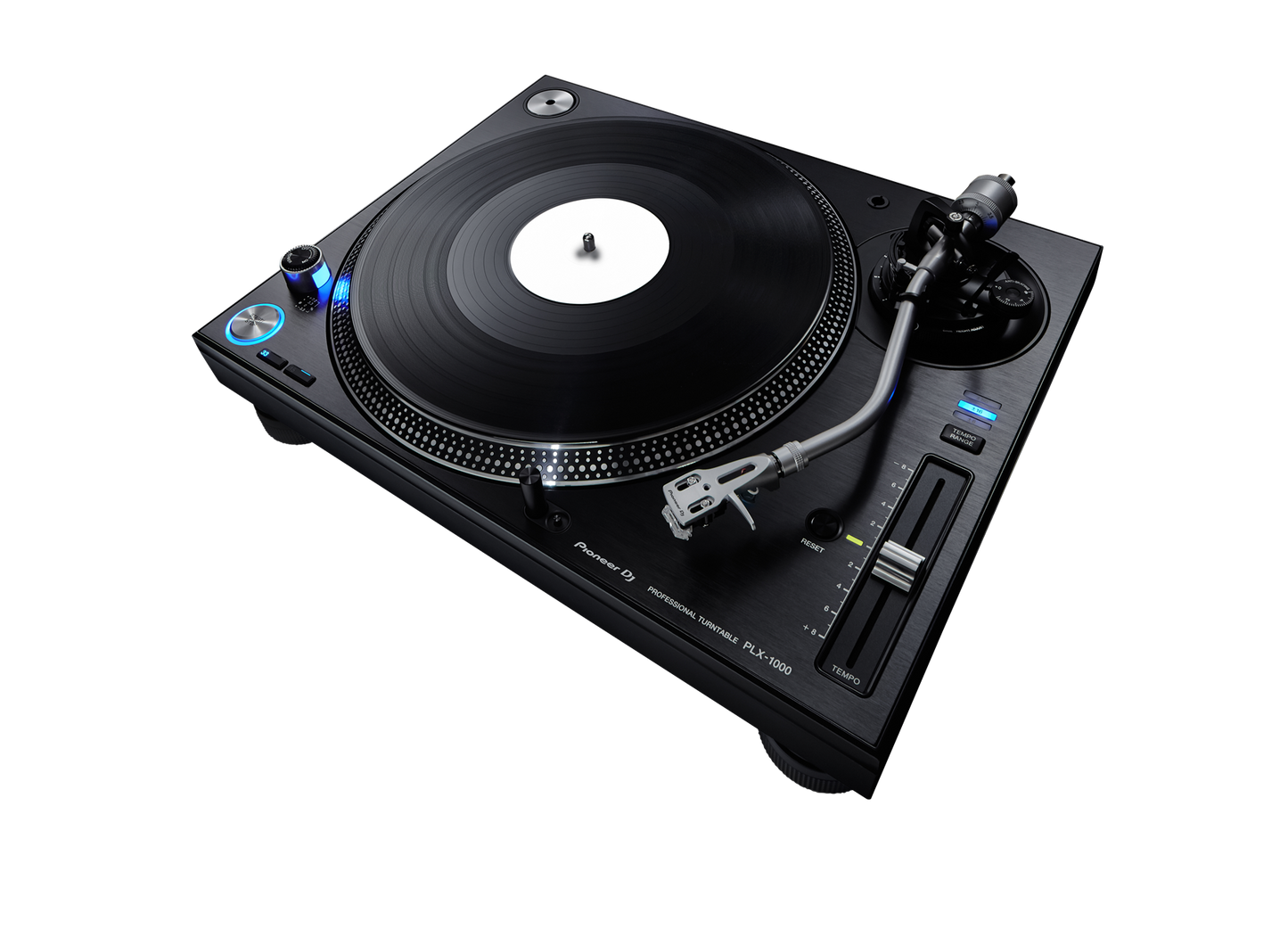

Pioneer PLX-1000

A reborn classic
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.

Drive Method: Quartz lock, servo-type, direct drive
Platter: Aluminium, die-casting diameter: 332 mm
Motor: 3-phase, brushless DC motor
Braking System: Electronic brake
Rotation Speed: 33⅓-45 rpm
Rotation Adjustment Range: ±8, ±16, ±50 %
Wow and Flutter: < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio: 70 dB
Starting Torque: > 4.5 kgf・cm
Start Time: Within 0.3 sec (at 33⅓ rpm)
Tone Arm: Arm Type Universal type S-shape tone arm
Gimbal-supported type bearing structure
Static balance type
Overhang: 15 mm
Effective Length: 230 mm
Tracking Error: Within 3°
Height Adjustment Range: 6 mm
Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
Proper Cartridge Weight: 2.5-12 g (includes mounting materials)

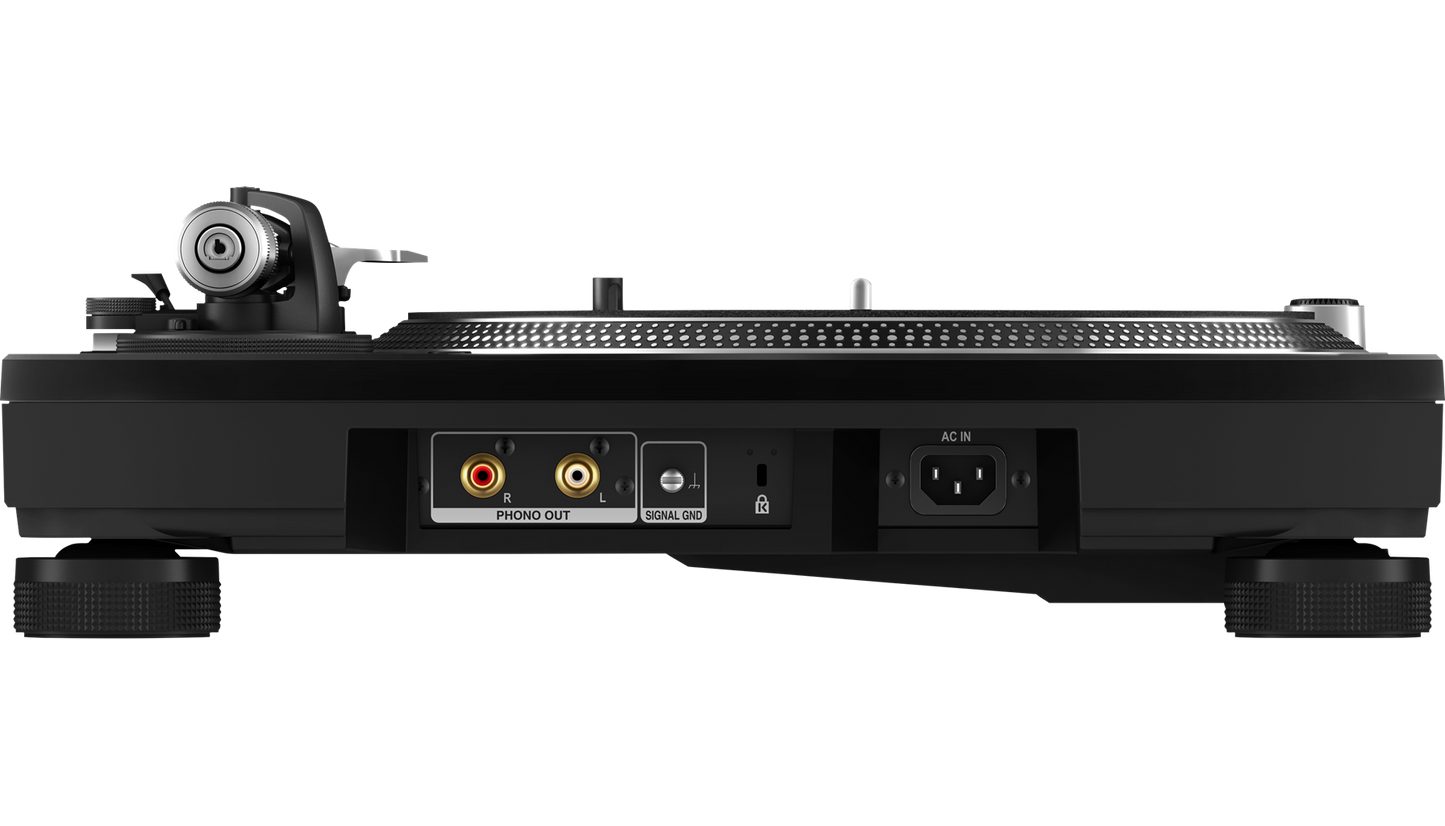

Terminals Outputs: 1 ANALOGUE (RCA)

Dimensions:
Width-453 mm
Height-159 mm
Depth-353 mm
Weight-14.6 kg
