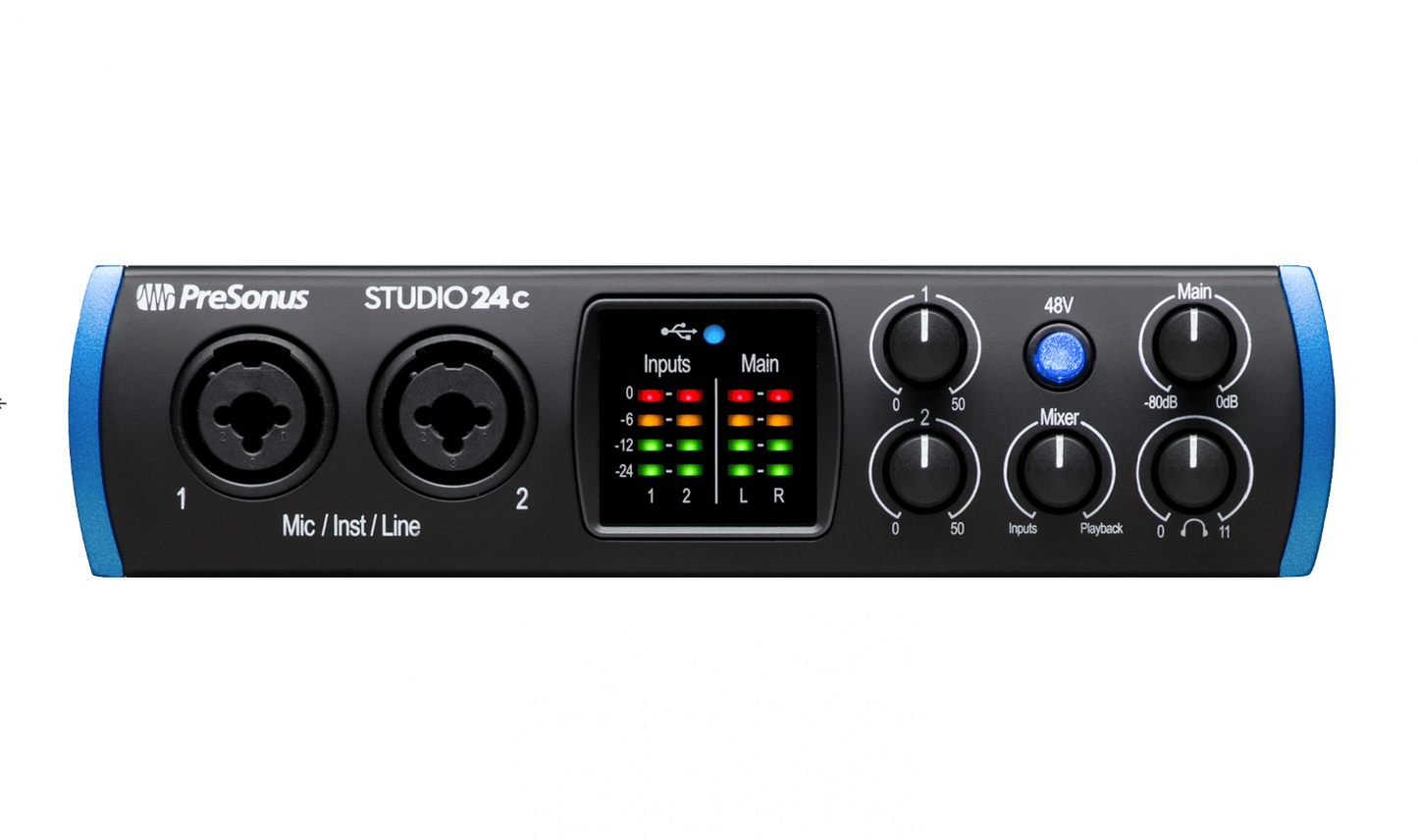

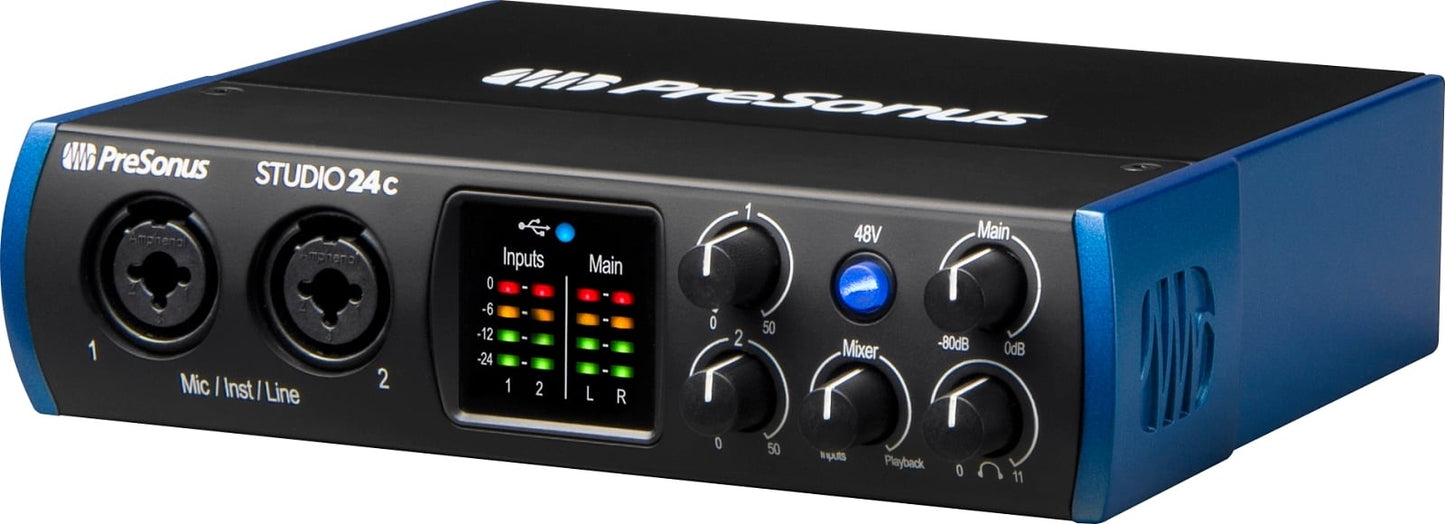

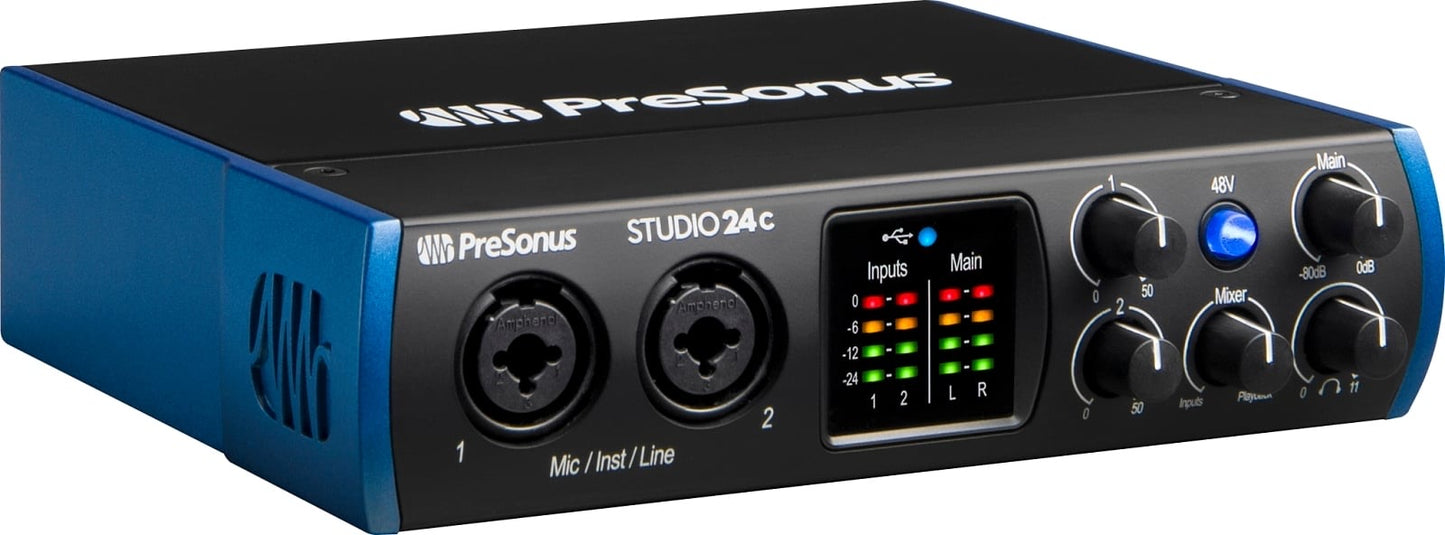

PreSonus Studio 24C Audio Interface
PreSonus Studio 24C Audio Interface
Couldn't load pickup availability
Share
Brand: PreSonus
Model: 24C
Professional quality for home recording studios.
Whether you’re recording your first album or your hit podcast’s latest episode, the Studio 24c will help you sound your best. With two of PreSonus’ pristine XMAX-L mic preamps for recording vocals; plus high headroom instrument preamps so you can connect your guitar or bass right to your interface; and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor. A complete home recording studio right out of the box, the Studio 24c audio interface comes with a complimentary license of PreSonus’ award-winning Studio One® Artist music production software, so you can get recording right away.

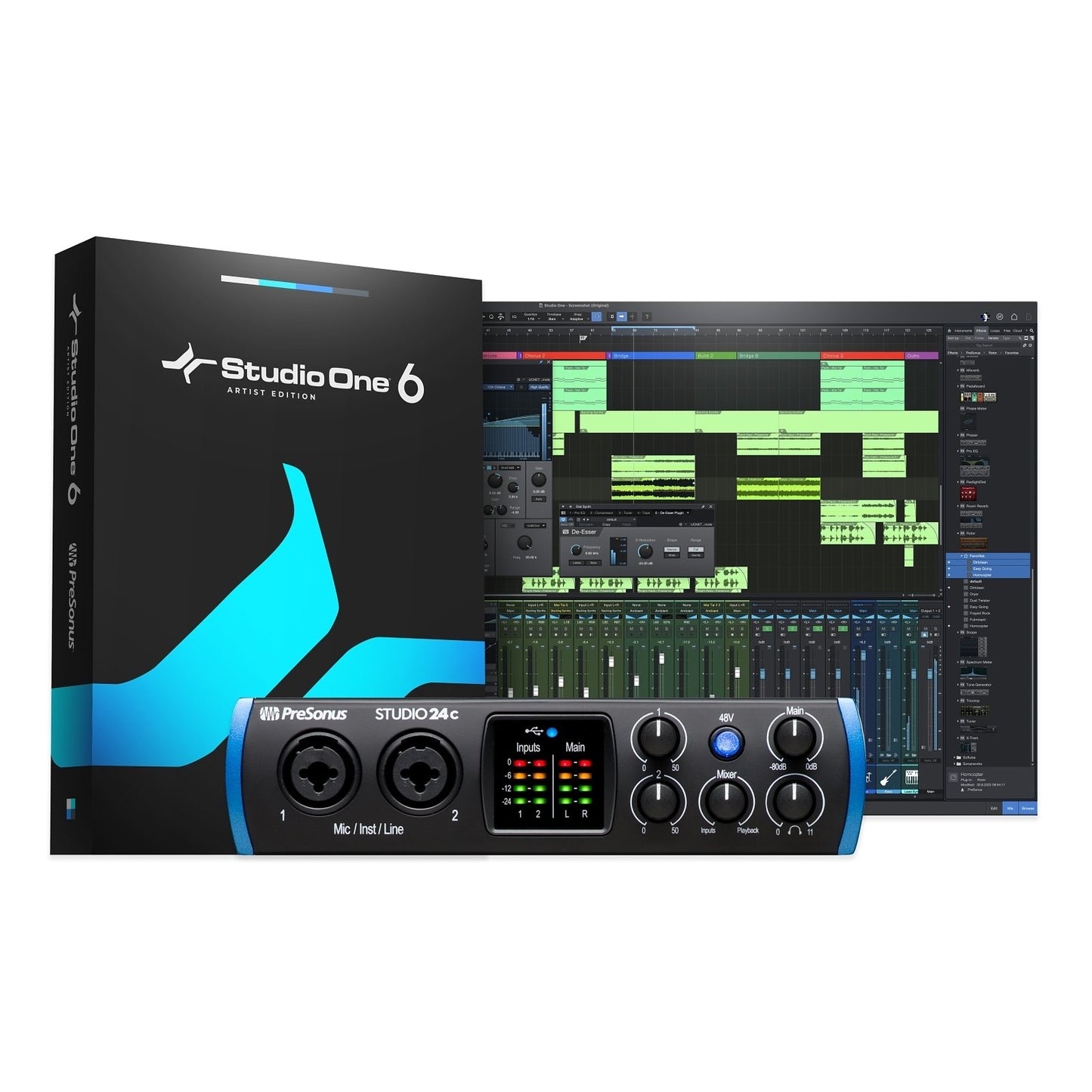

World-class recording software included.
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 24c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content and upgrades without even opening your browser—you’ll build the version of Studio One that’s right for you. By combining a flexible single-window user interface with modern, beat-based production workflow, Studio One’s drag-and-drop approach doesn’t dictate how you work or what you work on.
Superior sound.
The Studio 24c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX-L mic preamps are designed to perform optimally on bus-powered audio interfaces, allowing you to take great sound with you wherever you record.
Overview
Overview
Simultaneous I/O up to 2 inputs/2 outputs
2 mic/instrument/line inputs with XMAX-L mic preamps
2 balanced ¼-inch TRS main outputs to connect professional studio monitors
High-power headphone output
MIDI In/Out
Mixer knob for low-latency direct input monitoring
Front-panel level controls for main outputs
4 ladder-style LED level meters (2 input, 2 main output)
24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
Specifications
Specifications
*Microphone Preamp
Total Harmonic Distortion 0.004% (1 kHz, -1 dBFS, Minimum Gain)
Gain Control Range 50 dB
Microphone Preamp Maximum Input Level +10 dBu (±0.5 dBu, Minimum Gain)
Phantom Power +48 VDC, 10 mA
Frequency Response 20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Microphone Preamp Input Impedance 1.4 kΩ
Dynamic Range 106 dB (A-Weighted, Minimum Gain)
Equivalent Input Noise -126 dBu (A-Weighted, 150Ω, Maximum Gain)
*Instrument Inputs
Instrument Inputs Impedance 750 KΩ
Instrument Inputs Maximum Level +19 dBu (Minimum Gain)
Gain Range 50 dB
Frequency Response 20 Hz – 20 kHz (±0.1 dBu, Unity Gain, Unweighted)
Dynamic Range 105 dB (A-Weighted, Unity Gain)
Total Harmonic Distortion 0.002% (1 kHz, Minimum Gain)
*Main And Line Outputs
Main And Line Outputs Maximum Level
+10 dBu (1 kHz, Unity Gain, Balanced)
Main And Line Outputs Frequency Response
20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, -1 dBFS, Unity Gain)
Main And Line Outputs Dynamic Range
104 dB (Unity Gain, Unweighted)
*Headphone Outputs
Headphone Outputs Maximum Output 47 mW/Channel @56Ω
Frequency Response 20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)
Dynamic Range 83 dB (A-Weighted, 56Ω Load)
Total Harmonic Distortion 0.01% (1 kHz, 0 dBFS, Loaded)
Headphone Outputs Impedance Working Range 32Ω to 300Ω
*Digital Audio
Digital Audio Dynamic Range 108 dB
Digital Audio Bit Depth 24 Bit
Supported Sample Rates:
44.1, 48, 88.2, 96, 176.4, or 192 kHz (kHz)
*Electronics
Voltage USB Bus Powered

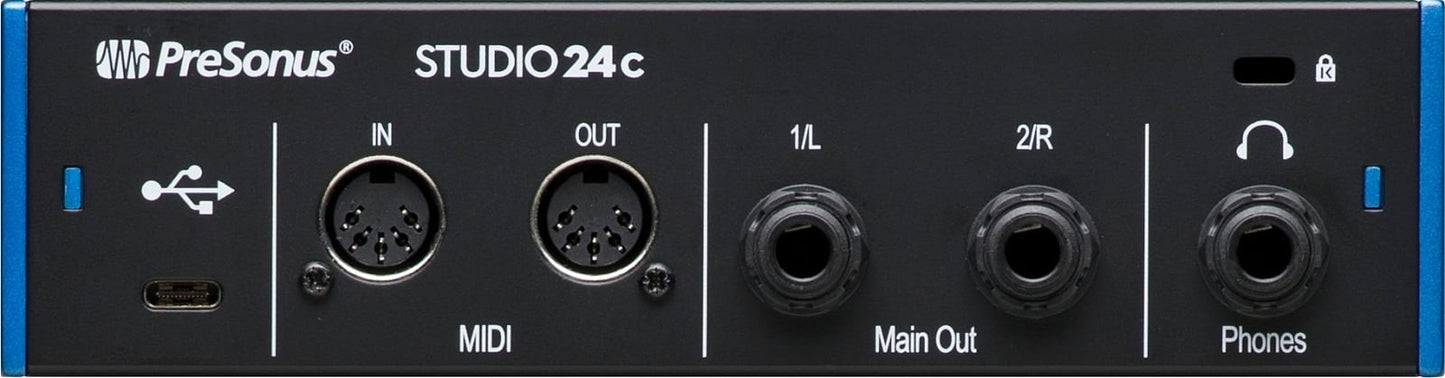

Inputs Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))
Headphone Jack 1/4" Stereo
Line Out Two - 1/4" Balanced (Left and Right)
*Miscellaneous
Connection Type USB-C Cable
MIDI I/O Dual 5-Pin Female DIN
